Linear Technology's LTC3670EDDB#TRPBF Power Management IC

The LTC3670EDDB#TRPBF is a versatile and compact power management integrated circuit (PMIC) from Linear Technology, designed to cater to a wide range of portable and space-constrained applications. This high-efficiency, synchronous step-down DC/DC converter is engineered to deliver excellent performance with a minimal footprint, making it an ideal solution for modern electronic devices where efficiency and board space are at a premium.

Key Features

• High Efficiency: The LTC3670EDDB#TRPBF boasts a high efficiency that can reach up to 95%, ensuring minimal power loss during operation and extending battery life in portable applications.
• Wide Input Voltage Range: With an input voltage range of 2.25V to 5.5V, the device can accommodate a variety of power sources, including single-cell lithium-ion batteries.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to the input voltage, providing flexibility in powering different components within a system.
• Current Mode Operation: The current mode operation provides excellent line and load transient response, ensuring stable performance across different conditions.
• Low Quiescent Current: It features a low quiescent current, which is crucial for battery-powered applications where conserving power is a priority.

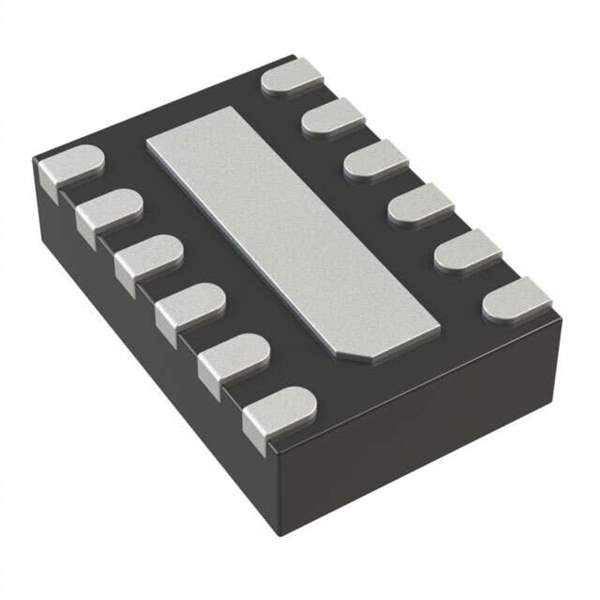

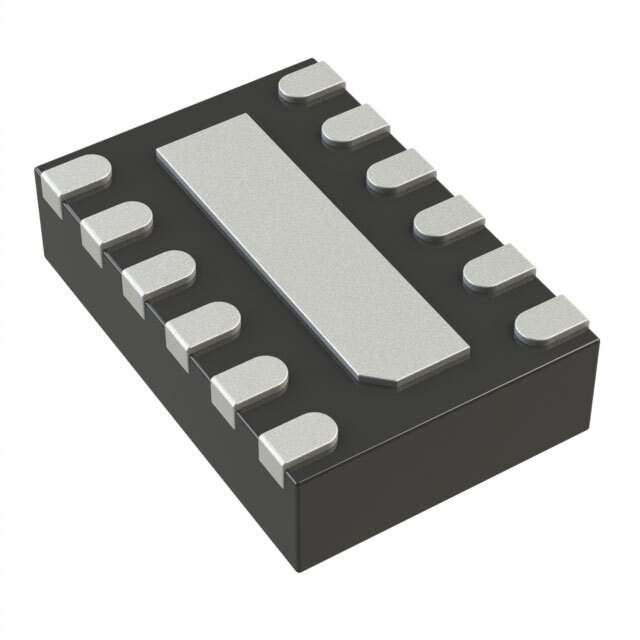

• Compact Package: The device comes in a 12-lead (3mm × 3mm) DFN package, which is ideal for space-constrained applications.

Applications

The LTC3670EDDB#TRPBF is suited for various applications, including but not limited to:

• Portable Instruments
• Medical Devices
• Wireless Networking Devices
• GPS Devices
• Battery-Powered Systems

Reliability and Performance

Linear Technology is known for its commitment to reliability and performance, and the LTC3670EDDB#TRPBF is no exception. It is designed to meet the stringent requirements of modern electronic systems, providing a reliable power solution that can withstand the rigors of daily use. With features such as over-temperature protection and over-current protection, the LTC3670EDDB#TRPBF ensures safe operation under various conditions.

In summary, the LTC3670EDDB#TRPBF from Linear Technology is a high-performance, efficient, and reliable power management solution, suitable for a wide range of applications where space and power efficiency are critical.
