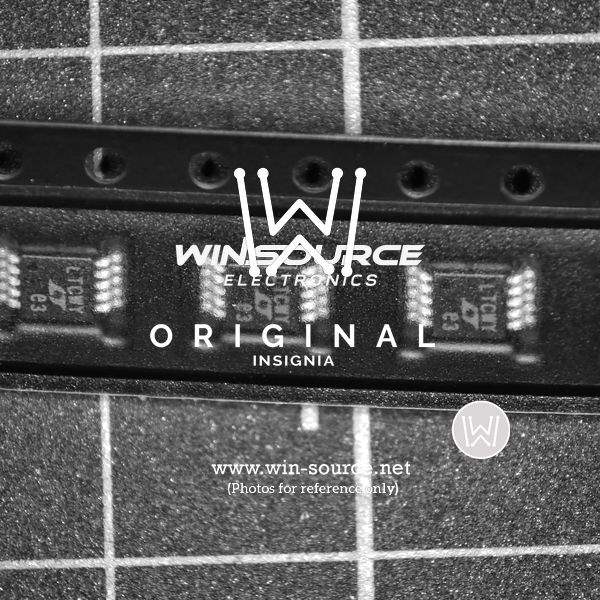

LTC4151IMS#PBF High Voltage I2C Current and Voltage Monitor

The LTC4151IMS#PBF is a sophisticated monitoring device from Linear Technology, designed to provide precise current and voltage measurement capabilities for power management applications. This high voltage I2C current and voltage monitor is ideal for a wide range of products, including servers, telecommunications equipment, industrial systems, and battery management systems.

One of the key features of the LTC4151IMS#PBF is its ability to monitor both current and voltage in real-time, providing system designers with critical insights into the power consumption and performance of their applications. The device operates over a wide voltage range of 7V to 80V, making it suitable for high voltage applications without the need for additional external components.

The LTC4151IMS#PBF utilizes an internal 12-bit analog-to-digital converter (ADC) to ensure accurate measurements. The current sense amplifier has a programmable gain, which allows for the monitoring of a wide range of load currents. The high-side current sense feature allows for the measurement of current flowing in the positive supply line, which is essential for battery-powered applications where ground disturbance cannot be tolerated.

Communication with the LTC4151IMS#PBF is handled via the I2C interface, which is a widely used two-wire serial bus. This allows for easy integration into most microcontroller-based systems. The device also includes a programmable alert output that can be configured to trigger an external interrupt when predefined thresholds for voltage or current are exceeded, providing an additional layer of protection for sensitive electronic systems.

The LTC4151IMS#PBF is available in a compact 10-lead MSOP package, which is suitable for space-constrained applications. Its robust design ensures reliable operation in harsh environments, with an operating temperature range from -40°C to +85°C. This product is also RoHS compliant, adhering to environmental standards for electronic components.

Overall, the LTC4151IMS#PBF is a versatile and reliable solution for system designers looking to enhance their power management capabilities, with high accuracy and ease of integration at the forefront of its design.
