Products specifications

Categories Integrated Circuits (ICs)
Manufacturer Linear Technology
Packaging Reel - TR
Type N+1 ORing Controller
Channel Type Type N
Internal Switch(s) No
Delay Time - ON 250ns
Delay Time - OFF 200ns
Operating Supply Current 1.4mA
Operating Supply Voltage 2.9 V ~ 18 V
Applications Redundant Power Supplies, Telecom Infrastructure
Operating Temperature Range -40°C ~ 85°C
Mounting SMD

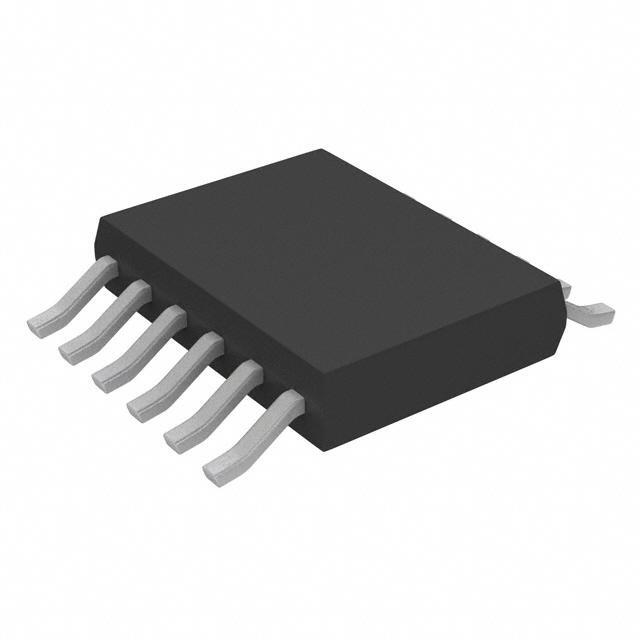

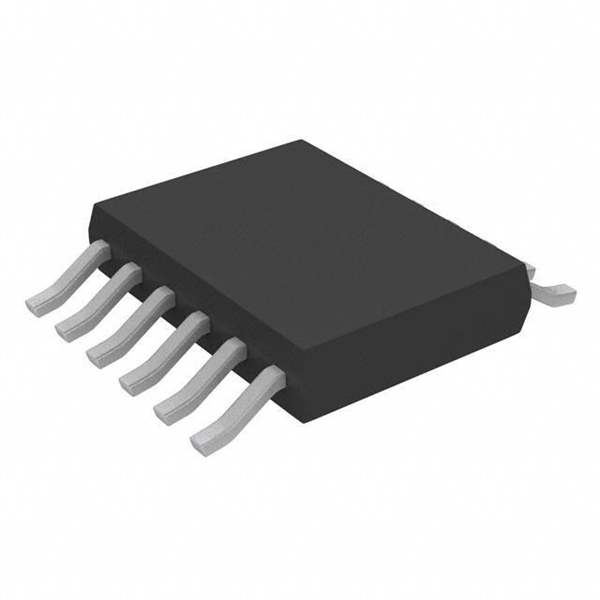

Package 12-TSSOP (0.118", 3.00mm Width)
Manufacturer Package 12-MSOP
Manufacturer Homepage www.linear.com
Win Source Part Number 732207-LTC4352IMS#TRPBF
Popularity Medium
Supply and Demand Status Balance
Family Name LTC4352
Introduction Date July 21, 2008
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian LTC4352IMS#TRPBF CAD Model

Description

Product Overview: LTC4352IMS#TRPBF

The LTC4352IMS#TRPBF from Linear Technology is a high-performance, low voltage diode-OR controller that plays a pivotal role in ensuring uninterrupted power supply in systems with multiple power sources. This advanced component is designed to manage power distribution smoothly and efficiently, replacing power Schottky diodes with N-channel MOSFETs. This replacement results in reduced power loss and heat dissipation, leading to improved system reliability and performance.

Key Features:

  • Low Loss Replacement for Power Schottky Diodes: By using N-channel MOSFETs, the LTC4352IMS#TRPBF significantly reduces the voltage drop across the power path, minimizing power loss and heat generation compared to traditional Schottky diodes.
  • Wide Operating Voltage Range: This controller operates efficiently across a broad range of input voltages from 9V to 80V, making it versatile for various applications.
  • Smooth Switchover: The device ensures seamless transition between power sources without causing any interruption to the load, maintaining a consistent and reliable power supply.
  • Reverse Input Protection: It protects the system from potential damage caused by reverse input, thereby enhancing the overall safety and durability of the application.
  • Compact and Robust Design: Encased in an MSOP package, the LTC4352IMS#TRPBF is compact and robust, suitable for space-constrained applications while providing rugged protection against harsh conditions.

Applications:

The LTC4352IMS#TRPBF is ideal for various high-reliability applications where continuous power is critical. It is commonly used in redundant power systems, servers, telecom and datacom systems, industrial computers, and any system that requires a robust and uninterrupted power supply.

Quality and Reliability:

Linear Technology ensures that the LTC4352IMS#TRPBF meets the highest quality and reliability standards. The device is available in a tape and reel package, denoted by the suffix 'TRPBF', which facilitates automated assembly processes and ensures a secure and efficient supply chain solution for mass production.
