The LTM8021IV#PBF is a comprehensive micro module power solution from Linear Technology, designed to simplify the process of power supply design. This innovative component integrates the inductor, power switch, and all support components into a compact, surface-mount package. By encompassing these elements, it allows for efficient and space-saving designs in a variety of applications, including industrial, automotive, and telecommunications systems.

Key Features

• Wide Input Voltage Range: The LTM8021IV#PBF operates over a broad input voltage range from 2.6V to 36V, making it versatile for use in a multitude of environments and with various input sources.
• Adjustable Output Voltage: Its output voltage can be adjusted from 1.25V to 13.8V, providing flexibility for designers to use the same component in different circuits with varying voltage requirements.
• High Efficiency: With its high-efficiency design, it minimizes power loss during operation, which is critical for performance and longevity in power-sensitive applications.
• Robust Temperature Performance: The LTM8021IV#PBF is designed to perform reliably in a wide temperature range, with an industrial-grade operating temperature range from -40°C to 125°C.
• Compact Footprint: Thanks to the micro module design, it offers a compact footprint that is ideal for space-constrained applications.

Applications

The LTM8021IV#PBF is suitable for a wide array of applications due to its versatile feature set. It is particularly useful in:

• Point-of-load power supplies
• Distributed power systems
• Battery-powered devices
• Data communication equipment
• Portable instruments

Technical Specifications

For engineers and designers considering the LTM8021IV#PBF for their projects, here are some of the technical specifications:

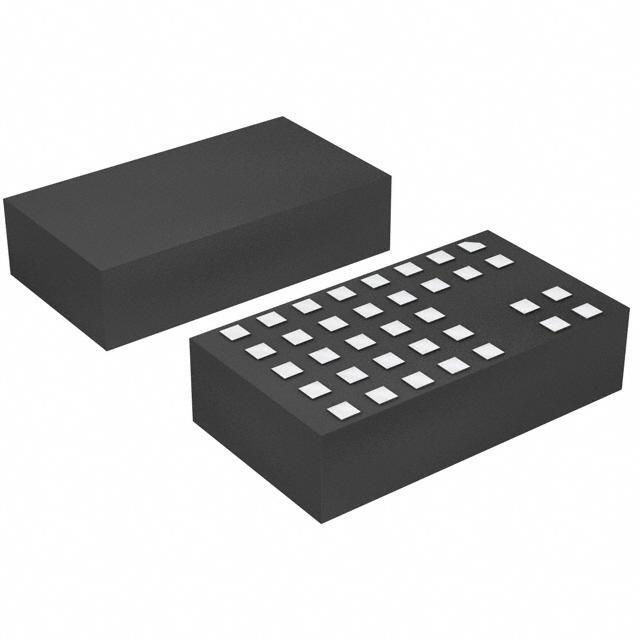

• Package: LGA
• Output Current: Up to 1A
• Switching Frequency: 1MHz
• Over-temperature protection
• RoHS compliant

In summary, the LTM8021IV#PBF from Linear Technology is a powerful, efficient, and flexible solution that streamlines the design of power supply circuits. Its integration of multiple components into a single package not only saves space but also reduces the time and complexity involved in power system design.
