The LTM8026MPV#PBF is a high-performance, µModule (micromodule) step-down regulator from Linear Technology, designed for a variety of applications that require efficient power conversion. This innovative component integrates the inductor, power switches, a DC/DC controller, and all the supporting components into a compact, surface-mount package, simplifying the design process and reducing the overall footprint on the PCB.

Key Features

• Wide Input Voltage Range: The device operates from an input voltage range of 6V to 36V, making it suitable for a wide array of sources, including automotive batteries and industrial supplies.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 10V, providing flexibility for various applications.
• High Efficiency: With its high-efficiency design, the LTM8026MPV#PBF ensures minimal heat generation and energy loss, which is critical for performance and reliability.
• High Temperature Operation: The MP grade version operates over a junction temperature range of –55°C to +125°C, suitable for harsh environments and demanding applications.

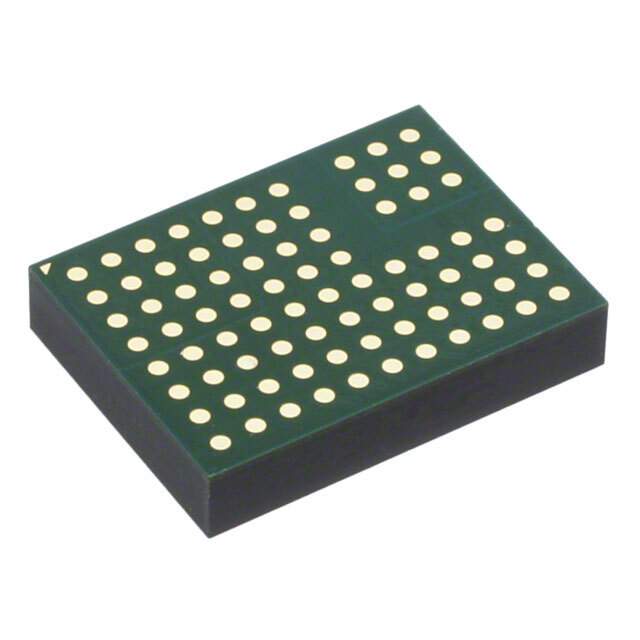

• Robust Package: Housed in a thermally enhanced, compact (15mm x 15mm x 4.92mm) over-molded land grid array (LGA) package, it is designed for automated assembly and offers excellent thermal performance.

Applications

The LTM8026MPV#PBF is ideal for use in a wide range of applications, including but not limited to:

• Telecommunications Infrastructure
• Industrial Equipment
• Automotive Systems
• Datacom and Storage Systems
• Medical Devices

Conclusion

With its robust design, ease of use, and versatile performance, the LTM8026MPV#PBF from Linear Technology is an excellent choice for engineers looking to implement a reliable power solution in their designs. Its integrated approach reduces design complexity, accelerates time-to-market, and ensures consistent performance even in the most demanding environments.
