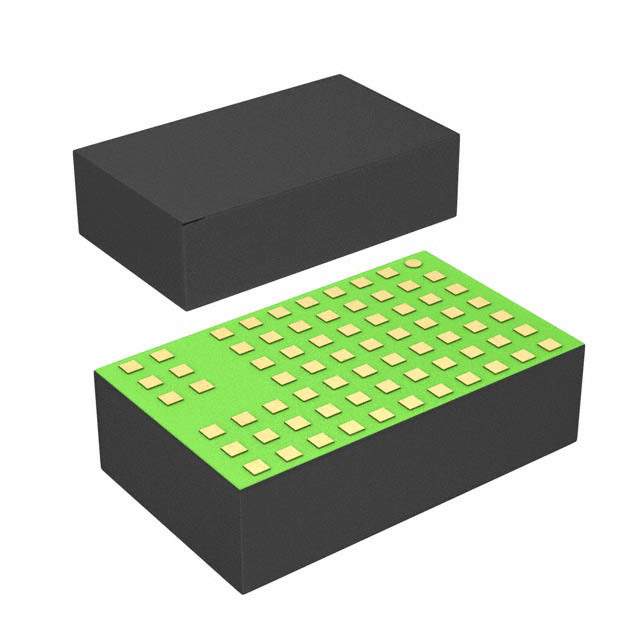

Product Overview: LTM8031MPV#PBF

The LTM8031MPV#PBF is a high-efficiency, step-down DC/DC μModule® (micromodule) regulator from Linear Technology (now part of Analog Devices). This innovative product integrates a switching regulator, inductors, MOSFETs, a DC/DC controller, and compensation in a compact, surface-mount package. Designed for ease of use, this power module requires only a few external components to operate and is capable of delivering up to 1A of continuous output current to voltages as low as 0.8V.

Key Features

• Wide Input Voltage Range: The LTM8031MPV#PBF operates over a wide input voltage range from 3.6V to 36V, making it suitable for a variety of applications, including industrial, automotive, and telecommunications.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 10V, providing flexibility for different power needs.
• High Efficiency: With its integrated design and advanced switching technology, this μModule regulator achieves high efficiency, which helps to minimize heat generation and improve system reliability.
• Compact Design: The module's compact LGA package (9mm x 15mm x 2.82mm) saves space on the PCB and simplifies the design process.
• Robust Thermal Performance: The LTM8031MPV#PBF is designed to operate in harsh environments with an operating temperature range of -40°C to +125°C.
• Integrated Protection Features: It includes over-temperature protection, over-current protection, and input under-voltage lockout to ensure safe operation under abnormal conditions.

Applications

The versatility of the LTM8031MPV#PBF makes it an ideal choice for a wide array of applications. It is particularly well-suited for use in space-constrained applications where a simple, reliable power solution is required. This includes but is not limited to:

• Automotive battery regulation
• Industrial supplies
• Telecommunications equipment
• Distributed supply regulation
• Satellite and radar systems

Conclusion

In summary, the LTM8031MPV#PBF by Linear Technology is a complete, efficient, and versatile power management solution that simplifies the design of complex power supply systems. Its integrated design, combined with high performance and reliability, makes it an excellent choice for engineers looking for a compact power solution.
