Overview of LTM9001IV-AD#PBF

The LTM9001IV-AD#PBF is a high-performance, µModule® ADC (analog-to-digital converter) from Linear Technology, designed to offer a complete and compact data acquisition solution for a wide range of applications. This product integrates a 14-bit, 125Msps ADC, a high-performance differential amplifier, and a precision reference in a single package, streamlining design and reducing the overall footprint on the PCB.

Key Features

• Integrated Solution: The LTM9001IV-AD#PBF combines an ADC, differential amplifier, and reference voltage in a compact LGA package, providing a simplified solution for signal conversion needs.
• High-Speed Performance: With a 14-bit resolution and a sampling rate of up to 125Msps, this ADC is capable of capturing high-speed signals with precision, making it suitable for demanding applications such as medical imaging, communications, and industrial instrumentation.
• Signal Chain Protection: It includes overvoltage protection for the input signals, ensuring reliability and longevity even in harsh electrical environments.
• Low Noise: The integrated differential amplifier is designed for low noise performance, which is critical for achieving high signal integrity in sensitive applications.

Applications

The versatility of the LTM9001IV-AD#PBF allows it to be used in a variety of applications, including:

• Medical Imaging Systems
• Data Acquisition Systems
• Wireless and Wired Broadband Communication
• Industrial Process Control
• Radar and Satellite Communication Systems

Technical Specifications

• Resolution: 14 bits
• Max Sampling Rate: 125Msps
• Input Type: Differential
• Supply Voltage: 3.3V

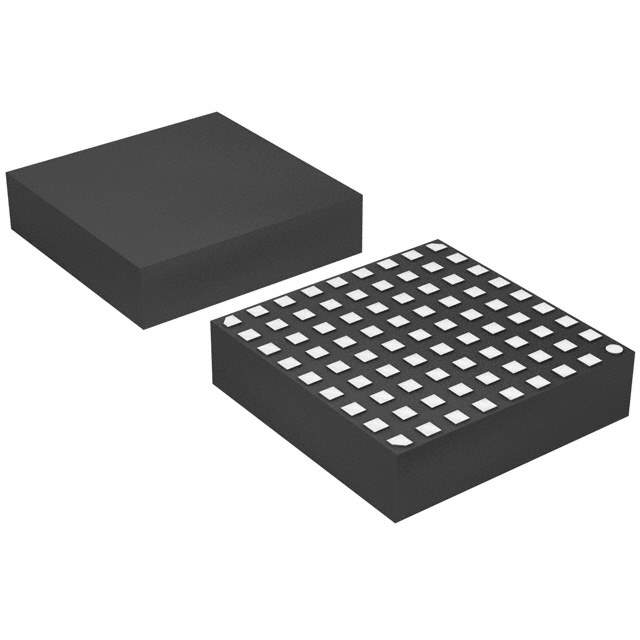

• Package: 15mm x 15mm LGA
• Operating Temperature: -40°C to +85°C

The LTM9001IV-AD#PBF is a testament to Linear Technology's commitment to providing innovative solutions that simplify the design process and enhance system performance. Its integration of key functions into a single module offers a reliable and efficient path to market for complex electronic systems.
