Same model may have multiple batches, images only for reference.

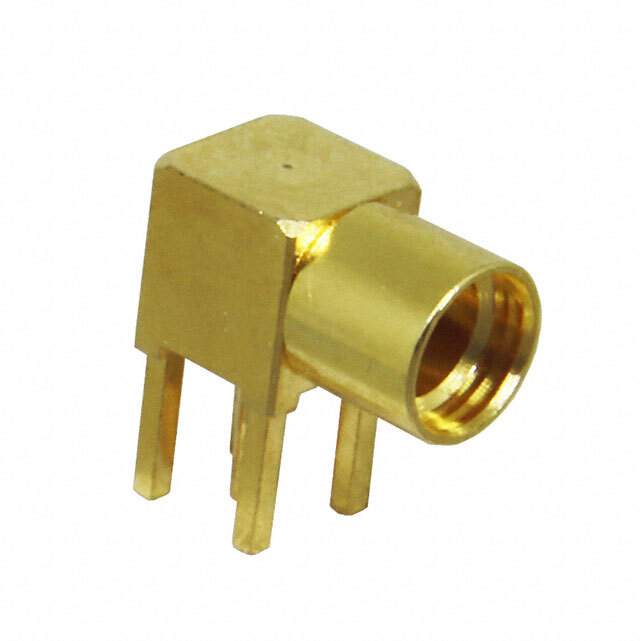

CONMMCX002 Real Image
Same model may have multiple batches, images only for reference.

CONMMCX002

Part No CONMMCX002
Manufacturer Linx Technologies Inc.
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN MMCX RCPT R/A 50 OHM PCB / MMCX Connector Receptacle, Female Socket 50Ohm Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Linx Technologies Inc.
Package Bulk
Connector Style MMCX
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 170 V
Mating Cycles 500
Insertion Loss 0.3dB
Base Product Number CONMMCX
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1341021-CONMMCX002
Ultra Librarian 3D Model Ultra Librarian CONMMCX002 CAD Model

Description

The Linx Technologies Inc. CONMMCX series coaxial connector assembly features a receptacle female socket with a snap-on fastening type.

  • Frequency Range: Up to 6 GHz
  • Impedance: 50Ohm
  • Voltage Rating: 170V
  • Body Material: Brass
  • Temperature Range: -65°C to 165°C
  • Mating Cycle: 500
  • Ideal for: Use in various applications such as wireless communications and test and measurement equipment
