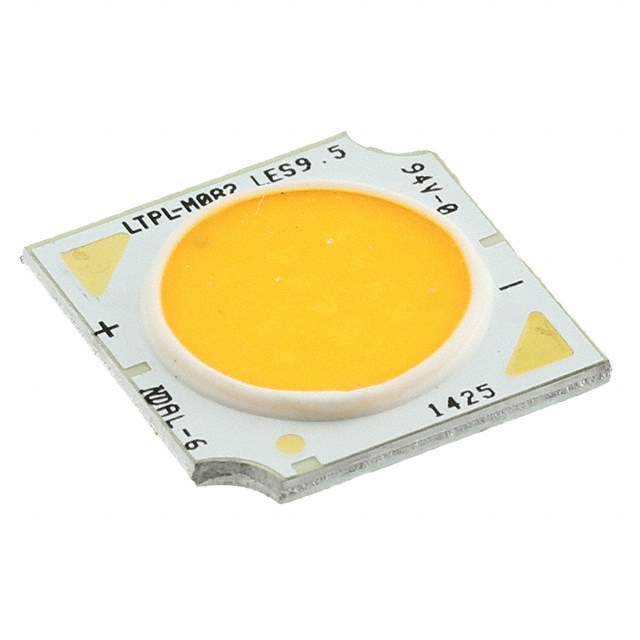

LTPL-M08218ZS27-T0 Real Image
Same model may have multiple batches, images only for reference.

LTPL-M08218ZS27-T0

Part No LTPL-M08218ZS27-T0
Manufacturer Lite-On Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CCT 2700K 80CRI 24W SMD / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
LTPL-M08218ZS27-T0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Lite-On Inc.
Series LTPL-M08
Package Tube
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 1590lm (Typ)
Current - Test 360mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 36.5V
Lumens/Watt @ Current - Test 121 lm/W
Current - Max 600mA
CRI (Color Rendering Index) 80
Viewing Angle 120°
Dimension 13.50mm L x 13.50mm W
Height 1.80mm
Light Emitting Surface (LES) 9.50mm Dia
Lens Type Flat
Base Product Number LTPL-M08218
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Other Names LTPL-M08218ZS27-S1,LTPL-M08218ZS27-T0-ND,160-2123,160-2124,LTPL-M08218ZS27-S1-ND,160-2124-ND
Standard Package 30
Win Source Part Number 1006984-LTPL-M08218ZS27-T0
Ultra Librarian 3D Model Ultra Librarian LTPL-M08218ZS27-T0 CAD Model

Description

The Lite-On Inc. LTPL-M08218ZS27-T0 is a chip-on-board (COB) LED with a square configuration. The LED is available in white and warm colors with a CCT of 2700K.

  • Type: Chip-On-Board (COB) LED
  • Configuration: Square
  • Color: White and Warm
  • CCT: 2700K
  • Viewing Angle: 120°
  • Height: 1.80mm
  • Luminous Flux: 1590lm (typ) @ 360mA, 25°C
  • Package: Tube
  • Standard Package: 30
  • MSL Level: 3 (168 hours)
