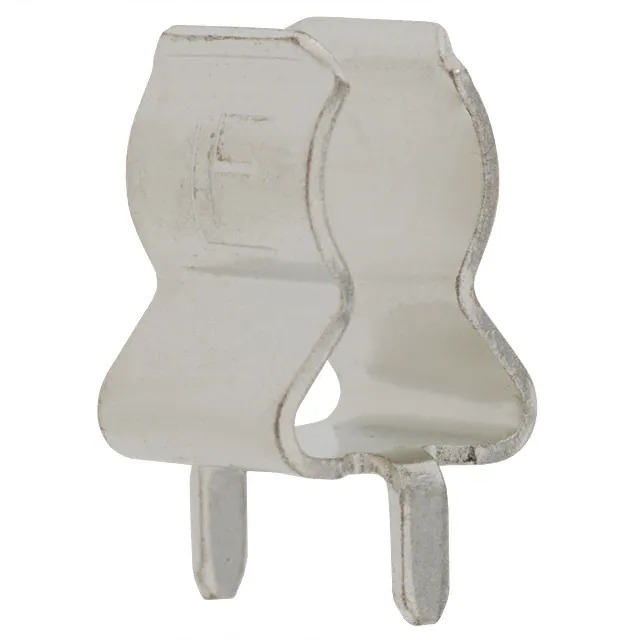

01020074Z Littelfuse Inc.
Same model may have multiple batches, images only for reference.

01020074Z

Part No 01020074Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE CLIP CARTRIDGE 250V 15A PCB / Fuse Clip 15 A 250V 1 Circuit Cartridge Through Hole
Datasheet
01020074Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 102
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Size 0.25" Dia (6.35mm)
Current Rating (Amps) 15 A
For Use With/Related Products 1/4" Dia Fuses
Fuse Type Cartridge
Fuseholder Type Clip
Number of Circuits 1
Voltage 250V
Orientation Horizontal
Termination Style PC Pin
Contact Material Spring Brass
Contact Finish Tin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361485-01020074Z
Ultra Librarian 3D Model Ultra Librarian 01020074Z CAD Model

Description

The 102 series fuseholder is designed for use with 1/4" diameter fuses from Littelfuse Inc.

  • Current Rating: 15 A
  • Voltage Rating: 250V
  • Mounting Type: Through-Hole
  • Termination Style: PC Pin
  • Orientation: Horizontal
  • Contact Material: Spring Brass
  • Contact Finish: Tin
  • Diameter: 0.25"
  • Packaging: Bulk
  • REACH: Unaffected
  • Approvals: CE, CSA, UL
  • Product Status: Active
