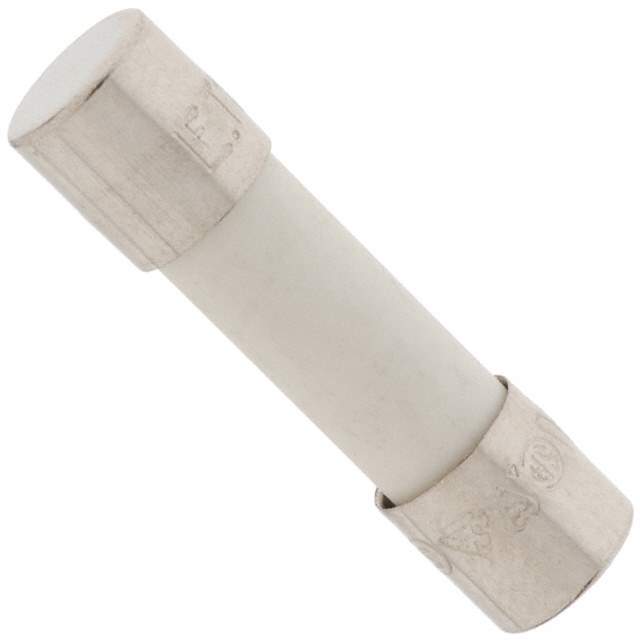

02163.15MXP Real Image
Same model may have multiple batches, images only for reference.

02163.15MXP

Part No 02163.15MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 3.15A 250VAC 5X20MM / 216 Series, 5 x 20 mm, Fast-Acting Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 3.15A
Voltage Rating - AC 250V
Response Time Fast Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 1.5kA
Melting I2t 6.7
Approvals CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0368 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804173-02163.15MXP
Ultra Librarian 3D Model Ultra Librarian 02163.15MXP CAD Model

Description

The Littelfuse Inc. 804173-02163.15MXP is a fast blow ceramic cartridge fuse with a voltage rating of 250V AC and a current rating of 3.15A.

  • Voltage Rating: 250V AC
  • Current Rating: 3.15A
  • DC Cold Resistance: 0.0368 Ohms
  • Breaking Capacity @ Rated Voltage: 1.5kA
  • Dimension: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Mounting: Holder
  • Approvals: CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
  • Melting I2t: 6.7
  • Manufacturer Package: 5mm x 20mm
  • Manufacturer Pack Quantity: 1,000
  • Popularity: Medium
