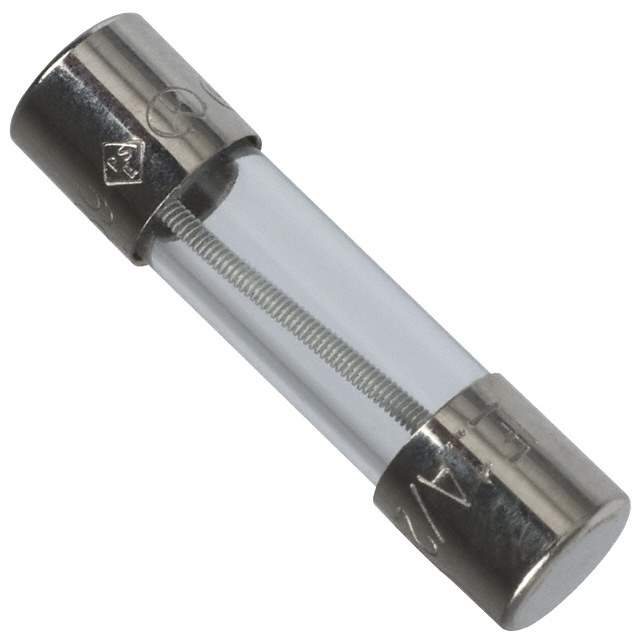

0239003.HXP Real Image
Same model may have multiple batches, images only for reference.

0239003.HXP

Part No 0239003.HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 3A 250VAC 5X20MM  /  3 A 250 V AC DC Fuse Cartridge, Glass Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 239
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 3 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 100A
Melting I2t 129.51
Approval Agency CE, CSA, KC, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.04877 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Other Names 239003,0239003HXP,F2707,239003XP,-1024-0239003.HXP,239003.P,239003.XP,0239003.HXP-ND
Standard Package 100
Win Source Part Number 1150253-0239003.HXP
Ultra Librarian 3D Model Ultra Librarian 0239003.HXP CAD Model

Description

The Littelfuse Inc. 1150253-0239003.HXP is a cartridge glass fuse that is ideal for circuit protection.

  • Voltage Rating: 250 V
  • Response Time: Slow blow
  • Breaking Capacity: 100A
  • DC Cold Resistance: 0.04877 Ohms
  • Package/Case: 5mm x 20mm
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Mounting: Holder
  • Approvals: CE, CSA, KC, PSE, UL
  • REACH: Unaffected
  • Alternative Parts: 0239003.HXP.
  • HTSUS: 8536.10.0020
