Same model may have multiple batches, images only for reference.

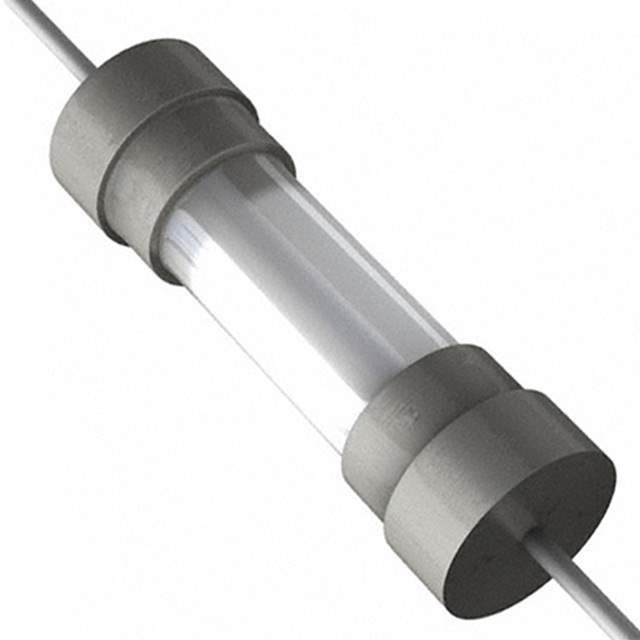

0977.800MXEP Real Image
Same model may have multiple batches, images only for reference.

0977.800MXEP

Part No 0977.800MXEP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 800MA 500VAC 450VDC  /  800 mA 500 V AC 450 V DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
Datasheet
0977.800MXEP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 977
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 800 mA
Voltage Rating - AC 500 V
Voltage Rating - DC 450 V
Response Time Slow Blow
Package / Case 5mm x 20mm (Axial)
Breaking Capacity @ Rated Voltage 100A AC, 200A DC
Melting I2t 0.8
Approval Agency CE, SEMKO
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.236" Dia x 0.886" L (6.00mm x 22.50mm)
DC Cold Resistance 0.417 Ohms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Names -0977.800MXEP,F1677,0977800MXEP
Standard Package 1,000
Win Source Part Number 1033989-0977.800MXEP
Ultra Librarian 3D Model Ultra Librarian 0977.800MXEP CAD Model

Description

The 977 Series Cartridge Ceramic Fuse is manufactured by Littelfuse Inc.

  • Rating: 800mA
  • Voltage Rating: 500V AC and 450V DC
  • Response Time: Slow Blow
  • Breaking Capacity: 100A AC and 200A DC @ rated voltage
  • Mounting: Through Hole
  • Package Size: 5mm x 20mm (Axial)
  • Package Contains: 1000 fuses
