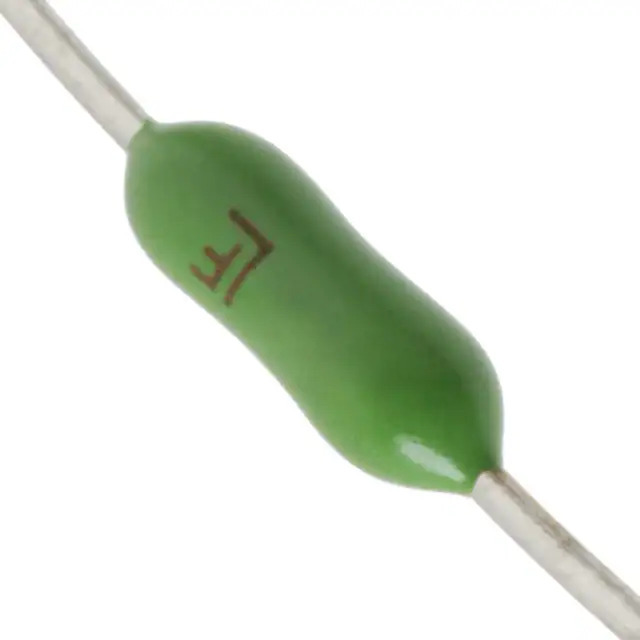

0251005.MXL Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0251005.MXL

Part No 0251005.MXL
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MNT 5A 125VAC/VDC AXIAL / 5 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Axial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series PICO® II 251
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case Axial
Breaking Capacity @ Rated Voltage 50A AC, 300A DC
Melting I²t 4.14
Approval Agency CCC, CSA, cURus, PSE, TUV
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.110" Dia x 0.280" L (2.80mm x 7.11mm)
DC Cold Resistance 0.0158 Ohms
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361327-0251005.MXL
Ultra Librarian 3D Model Ultra Librarian 0251005.MXL CAD Model

Description

The 1361327-0251005.MXL is a circuit protection fuse manufactured by Littelfuse Inc.

  • Series: PICO II 251
  • Application: Board Mount
  • Current Rating: 5A
  • Voltage Rating: 125V AC and DC
  • Response Time: Fast Blow
  • Breaking Capacity (AC): 50A AC @ rated voltage
  • Breaking Capacity (DC): 300A DC @ rated voltage
  • Size: 0.110" diameter and 0.280" length
  • Mounting Type: Through-Hole
  • Packaging: Bulk
  • Approvals: CCC, CSA, cURus, PSE, and TUV
