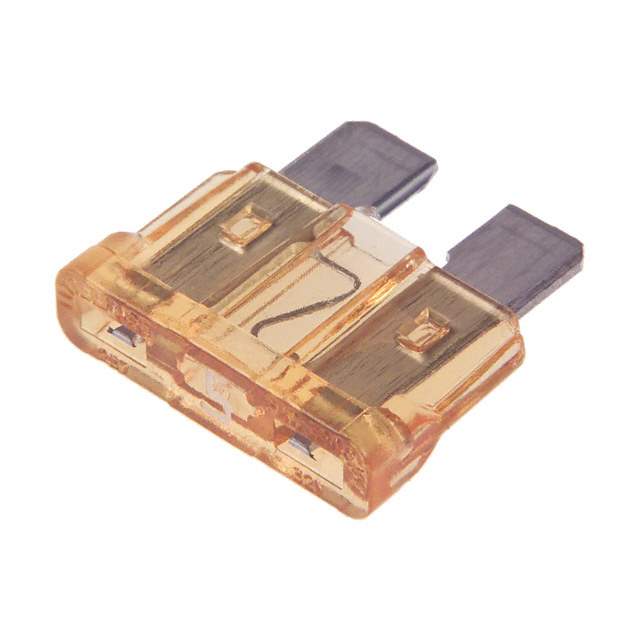

0257005.PXPV Real Image
Same model may have multiple batches, images only for reference.

0257005.PXPV

Part No 0257005.PXPV
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 5A 32VDC BLADE ATO/ATC  /  5 A AC 32 V DC Fuse Automotive Holder Blade, ATO/ATC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series ATO®
Package Bulk
Product Status Obsolete
Mounting Type Holder
Fuse Type Automotive
Current Rating (Amps) 5 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case Blade, ATO/ATC
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 26
Color Tan
Dimension 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm)
DC Cold Resistance 0.01785 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names 0257005,0257005.,0257005.P,0257005.PXOCR,0257005.PXP,0257005PXP,257005,257005.PXP,F998,P257005
Standard Package 2,000
Win Source Part Number 1015396-0257005.PXPV
Ultra Librarian 3D Model Ultra Librarian 0257005.PXPV CAD Model

Description

The Littelfuse Inc. ATO® 0257005.PXPV is an automotive fuse with a voltage rating of 32 V and a current rating of 5 A.

  • Voltage Rating: 32 V
  • Current Rating: 5 A
  • Response Time: Fast Blow
  • Breaking Capacity @ Rated Voltage: 1kA
  • DC Cold Resistance: 0.01785 Ohms
  • Melting I2t: 26
  • Package: Blade, ATO/ATC
  • Temperature Range: -25°C to 105°C
