Same model may have multiple batches, images only for reference.

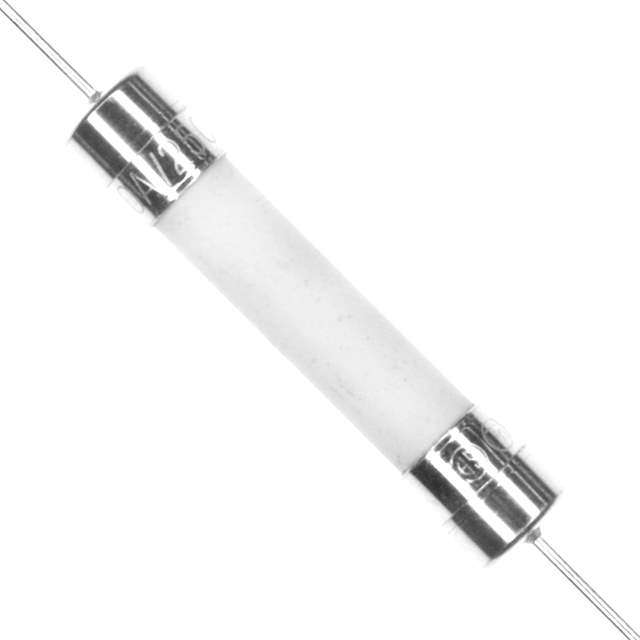

0325020.MXDP Real Image
Same model may have multiple batches, images only for reference.

0325020.MXDP

Part No 0325020.MXDP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 20A 250VAC 60VDC 3AB  /  20 A 250 V AC 60 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 325
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 20 A
Voltage Rating - AC 250 V
Voltage Rating - DC 60 V
Response Time Slow Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 400A AC, 500A DC
Melting I2t 1900
Approval Agency CE, CSA, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
DC Cold Resistance 0.0042 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names F10773,-0325020.MXDP,0325020.MXDP-ND,325020.MXDP
Standard Package 1,000
Win Source Part Number 1013537-0325020.MXDP
Ultra Librarian 3D Model Ultra Librarian 0325020.MXDP CAD Model

Description

The 0325020.MXDP is a cartridge, ceramic fuse that belongs to the circuit protection category. It comes in a 3AB, 3AG, 1/4" x 1-1/4" (Axial) package and has a standard package of 1,000. The voltage rating - AC is 250 V, and the voltage rating - DC is 60 V.

  • Response Time: slow blow
  • Breaking Capacity @ Rated Voltage: 400A AC, 500A DC
  • Melting I2t: 1900
  • DC Cold Resistance: 0.0042 Ohms
  • Operating Temperature: -55°C ~ 125°C
  • Current Rating (Amps): 20 A
  • Manufacturer: Littelfuse Inc.
  • Approvals: CE, CSA, and UL
