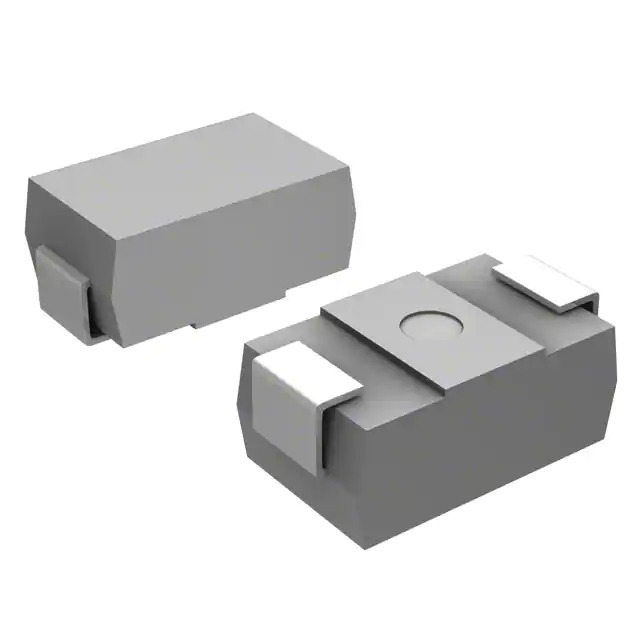

0459001.ER Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0459001.ER

Part No 0459001.ER
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MNT 1A 125VAC/VDC 2SMD / 1 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, J-Lead
Datasheet
0459001.ER Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series PICO® 459
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2-SMD, J-Lead
Breaking Capacity @ Rated Voltage 50A AC, 300A DC
Melting I²t 0.281
Approval Agency CSA, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm)
DC Cold Resistance 0.125 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361452-0459001.ER
Ultra Librarian 3D Model Ultra Librarian 0459001.ER CAD Model

Description

The PICO® 459 series from Littelfuse Inc. is a surface mount board mount fuse designed for circuit protection.

  • Current Rating: 1A
  • Voltage Rating: 125V AC/DC
  • Fuse Type: Fast Blow
  • Breaking Capacity (AC): 50A AC @ Rated Voltage
  • Breaking Capacity (DC): 300A DC @ Rated Voltage
  • Size: 0.285" L x 0.170" W x 0.120" H
  • Package: 2-SMD, J-Lead
  • Mounting: PCB
  • Approvals: CSA and UL
  • Product Status: Active
  • REACH: Unaffected by REACH
