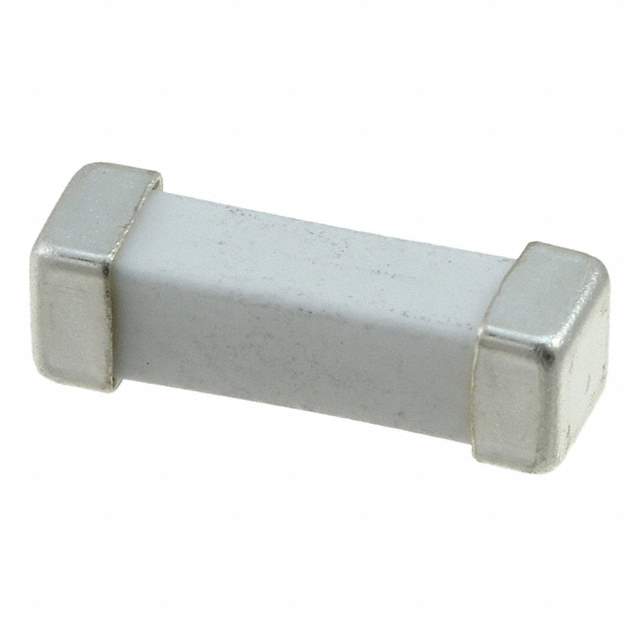

0463015.ER Real Image 0463015.ER label picture
Same model may have multiple batches, images only for reference.
0463015.ER Real Image 0463015.ER label picture
0463015.ER Real Image 0463015.ER label picture
Same model may have multiple batches, images only for reference.

0463015.ER

Part No 0463015.ER
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE 250V V FA NANO2 15A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 15A
Voltage Rating - AC 250V
Voltage Rating - DC 100V
Response Time Fast Blow
Manufacturer Package 2-SMD, Square End Block
Mounting Style SMD
Breaking Capacity at Rated Voltage 100A AC, 50A DC
Melting I2t 142
Approvals cURus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm)
DC Cold Resistance 0.0047 Ohms
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803873-0463015.ER
Ultra Librarian 3D Model Ultra Librarian 0463015.ER CAD Model

Description

The Littelfuse 803873-0463015.ER fuse is a board mount (cartridge style excluded) component with a voltage rating of 250V AC and 100V DC.

  • Voltage Rating: 250V AC, 100V DC
  • Current Rating: 15A
  • Breaking Capacity: 100A AC, 50A DC
  • Response Time: Fast Blow
  • Mounting Type: SMD
  • Melting I2t: 142
  • DC Cold Resistance: 0.0047 Ohms
  • Operating Temperature: -55°C to 125°C
  • Dimensions: 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm)
