Same model may have multiple batches, images only for reference.

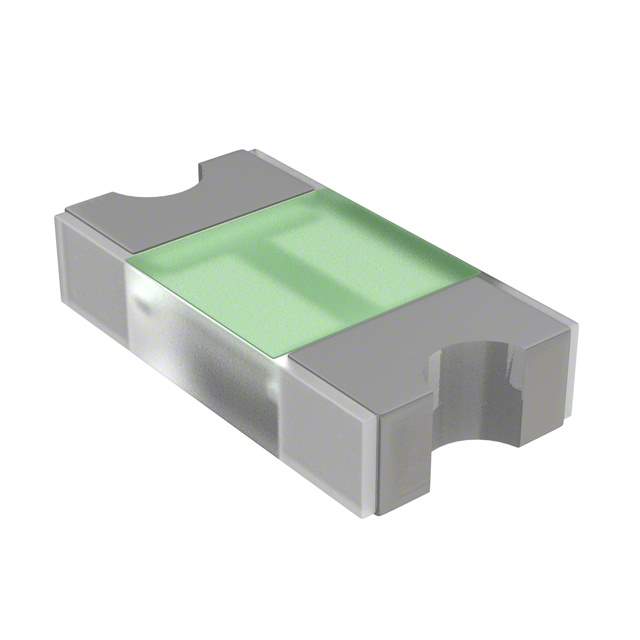

0494005.NR Real Image
Same model may have multiple batches, images only for reference.

0494005.NR

Part No 0494005.NR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Surface Mount Fuses | FUSE BOARD MNT 5A 32VAC/VDC 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5A
Voltage Rating - AC 32V
Voltage Rating - DC 32V
Response Time Fast Blow
Manufacturer Package 0603 (1608 Metric)
Mounting Style SMD
Breaking Capacity at Rated Voltage 35A
Melting I2t 0.9
Approvals CSA, UR
Temperature Range - Operating -50°C ~ 90°C
Parts Dimension 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.31mm)
DC Cold Resistance 0.009 Ohms
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120685-0494005.NR
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 0494005.NR CAD Model

Description

The 488111 from Littelfuse Inc. is a board mount fuse.

  • Response Time: fast blow
  • Voltage Rating: 32V AC/DC
  • Current Rating: 5A
  • Breaking Capacity: 35A @ rated voltage
  • Application: circuit protection
  • Approvals: CSA and UR
  • DC Cold Resistance: 0.009 Ohms
  • Melting I2t: 0.9
  • Package: 0603 (1608 Metric)
  • Mounting: SMD
  • Temperature Range: -50°C to 90°C
  • Packaging: reel
