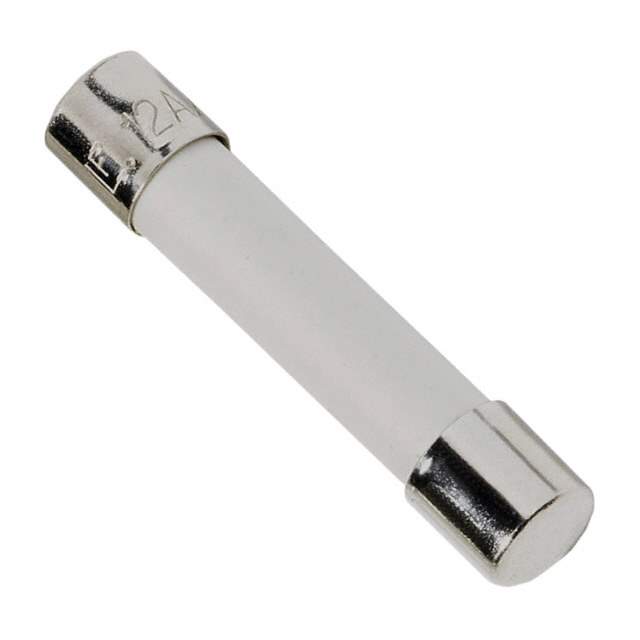

0505015.MXP Real Image
Same model may have multiple batches, images only for reference.

0505015.MXP

Part No 0505015.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 15A 500VAC/VDC 3AB / Axial Lead & Cartridge Fuses 3AB > Fast-Acting > 505 Series
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 15A
Voltage Rating - AC 500V
Voltage Rating - DC 500V
Response Time Fast Blow
Manufacturer Package 3AB, 3AG, 1/4" x 1-1/4"
Mounting Style Holder
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809126-0505015.MXP
Ultra Librarian 3D Model Ultra Librarian 0505015.MXP CAD Model

Description

The Littelfuse Inc. 809126-0505015.MXP is a medium popularity ceramic cartridge fuse.

  • Voltage Rating: 500V AC/DC
  • Response Time: Fast Blow
  • Temperature Range: -55°C to 125°C
  • Manufacturer Package: 3AB, 3AG, 1/4" x 1-1/4"
  • Pack Quantity: 1,000
