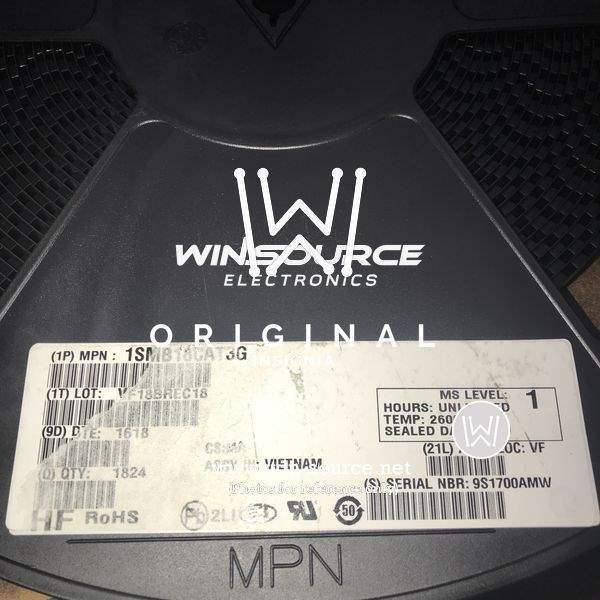

1SMB16CAT3G Real Image 1SMB16CAT3G label picture
Same model may have multiple batches, images only for reference.
1SMB16CAT3G Real Image 1SMB16CAT3G label picture
1SMB16CAT3G Real Image 1SMB16CAT3G label picture
Same model may have multiple batches, images only for reference.

1SMB16CAT3G

Part No 1SMB16CAT3G
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 16VWM 26VC SMB
Datasheet
1SMB16CAT3G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 16V
Minimum Breakdown Voltage 17.8V
Max Clamping Voltage 26V
Peak Pulse Current(Ippm) 23.1A
Power Dissipation - Pd 600W
Applications Automotive
Capacitance @ Frequency 520pF @ 1MHz
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SMB
Win Source Part Number 1002616-1SMB16CAT3G
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1SMB16CAT3G CAD Model

Description

This circuit protection electronic component is manufactured by Littelfuse Inc. and has a limited supply and demand status.

  • Type: Zener type with bidirectional channels
  • Capacitance: 520pF @ 1MHz
  • Temperature Range: -65°C to 150°C (TJ)
  • Mounting: Surface mount, SMB (SMT) type
  • STAND-OFF Voltage (Vwm): 16V
  • Minimum Breakdown Voltage: 17.8V
  • Max Clamping Voltage: 26V
  • Peak Pulse Current (Ippm): 23.1A
  • Power Dissipation (Pd): 600W
  • Popularity: Medium
  • Risk of Fake Products: 86% risk of encountering fake products in the open market
