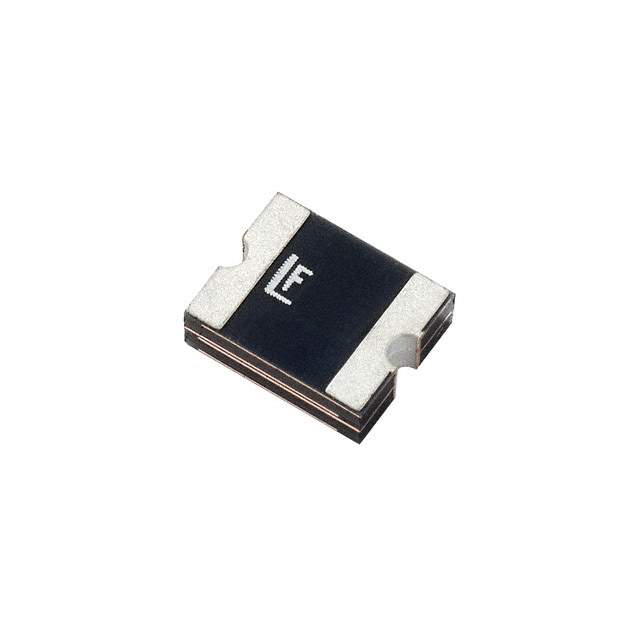

2016L150DR Real Image
Same model may have multiple batches, images only for reference.

2016L150DR

Part No 2016L150DR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYFUSE® Resettable PTCs | PTC RESET FUSE 15V 1.5A 2016
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 15V
Current - Max 40A
Current - Hold (Ih) (Maximum) 1.5A
Current - Trip (It) 3A
Time to Trip 1s
Resistance - Initial (Ri) (Minimum) 70 mOhms
Resistance - Post Trip (R1) (Maximum) 180 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2016 (5041 Metric), Concave
Parts Dimension 0.200" L x 0.160" W (5.08mm x 4.07mm)
Thickness (Maximum) 0.061" (1.55mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1122852-2016L150DR
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 2016L150DR CAD Model

Description

The 2016L150DR is a polymeric positive temperature coefficient (PPTC) device manufactured by Littelfuse Inc. It is designed to provide reliable overcurrent protection in a variety of applications, including automotive systems, power supplies, and industrial equipment.

  • Maximum Voltage: 15V
  • Current Trip: 3A
  • Time to Trip: 1s
  • Thickness: 0.061" (1.55mm)
  • Resistance (Initial): 70 mOhms
  • Resistance (Post Trip): 180 mOhms
  • Package: 2016 (5041 Metric), Concave
  • Supply and Demand Status: Sufficient
