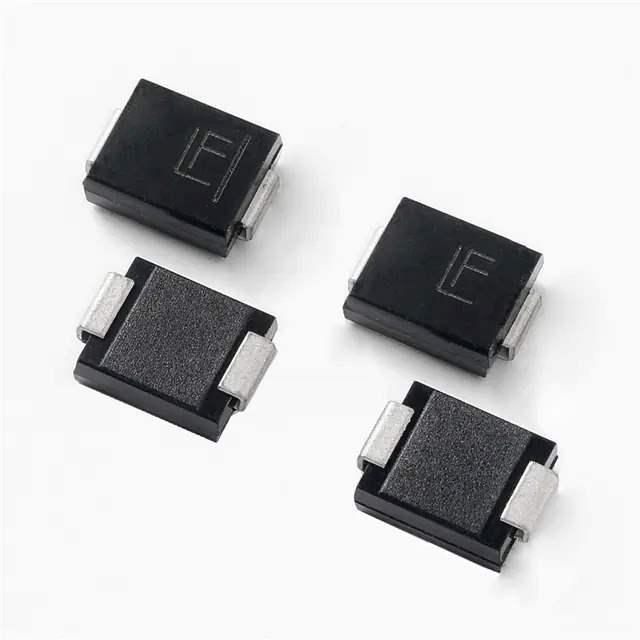

Same model may have multiple batches, images only for reference.

3.0SMCJ36A

Name: 3.0SMCJ36A
Brand: Littelfuse Inc.
SKU: 545240
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3.0SMCJ36A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 3000W UNI DO-214AB 36V
Datasheet	3.0SMCJ36A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	3.0SMCJ
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	36V
Voltage - Breakdown (Min)	40V
Voltage - Clamping (Max) @ Ipp	58.1V
Current - Peak Pulse (10/1000µs)	51.6A
Power - Peak Pulse	3000W (3kW)
Power Line Protection	No
Applications	Telecom
Temperature Range - Operating	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMCJ)
Base Product Number	3.0SMCJ
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	545240-3.0SMCJ36A
Ultra Librarian 3D Model	Ultra Librarian 3.0SMCJ36A CAD Model

Alternative Products

Description

The 545240-3.0SMCJ36A is a Zener type TVS diode from the 3.0SMCJ series by Littelfuse Inc.

Type: Zener TVS Diode
Series: 3.0SMCJ
Manufacturer: Littelfuse Inc.
Application: Telecom
Package: Tape & Reel
Standard Package Quantity: 3,000 pieces
Channel Type: Unidirectional
Reverse Standoff Voltage: 36V
Breakdown Voltage: 40V
Clamping Voltage @ Peak Pulse Current (Ipp): 58.1V
Power Peak Pulse: 3,000W (3kW)
Peak Pulse Current: 51.6A @ a pulse duration of 10/1000μs
Mounting Type: Surface Mount
Package: DO-214AB (SMC)
Operating Temperature: -65°C to 150°C
ECCN: EAR99
HTSUS: 8541.10.0080
