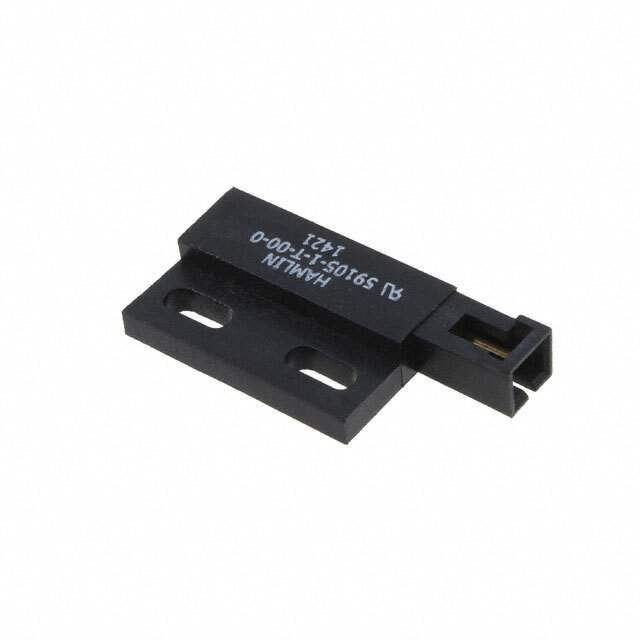

59105-1-T-00-0 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59105-1-T-00-0

Part No 59105-1-T-00-0
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NO CONNECTOR
Datasheet
59105-1-T-00-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Part Status Active
Type Reed Switch
Output Type SPST-NO
Actuator Material Magnet
Termination Style Connector
Must Operate 9.00mm
Operating Temperature -40°C ~ 105°C
Package / Case Module
Ultra Librarian 3D Model Ultra Librarian 59105-1-T-00-0 CAD Model

Description

The 59105 is a flange mounting reed sensor 28.57mm x 19.05mm x 6.35mm (1.125” x 0.750” x 0.250”) with an integral two-pin connector. It has choices of normally open, normally open high voltage or normally closed contacts and it’s case design enables screw or adhesive mounting. It is capable of switching up to 265Vac/300Vdc at 10VA. The 59105 functions best with the matching actuator 57105-000.
