Same model may have multiple batches, images only for reference.

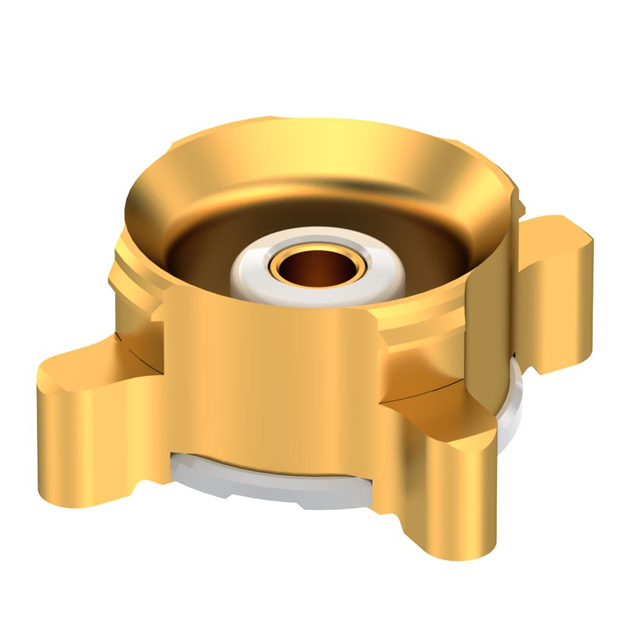

R223434000 Real Image
Same model may have multiple batches, images only for reference.

R223434000

Part No R223434000
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF)
Description MMBX M SMT C100 / MMBX Connector Plug, Male Pin 50Ohm Surface Mount Solder
Datasheet
R223434000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Radiall USA, Inc.
Package Bulk
Connector Style MMBX
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper, Brass
Body Material Brass; Bronze
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 155°C
Voltage Rating 330 V
Mating Cycles 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names R223.434.000,2201-R223434000
Standard Package 100
Win Source Part Number 1168392-R223434000
Ultra Librarian 3D Model Ultra Librarian R223434000 CAD Model

Description

The Radiall USA, Inc. R223.434.000 is a coaxial connector with a plug, male pin connector type and snap-on fastening type.

  • Connector Type: Plug, Male Pin
  • Fastening Type: Snap-on
  • Contact Termination: Solder
  • Connector Style: MMBX
  • Voltage Rating: 330 V
  • Frequency Max: 12.4 GHz
  • Impedance: 50Ohm
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C to 155°C
  • ECCN: EAR99
