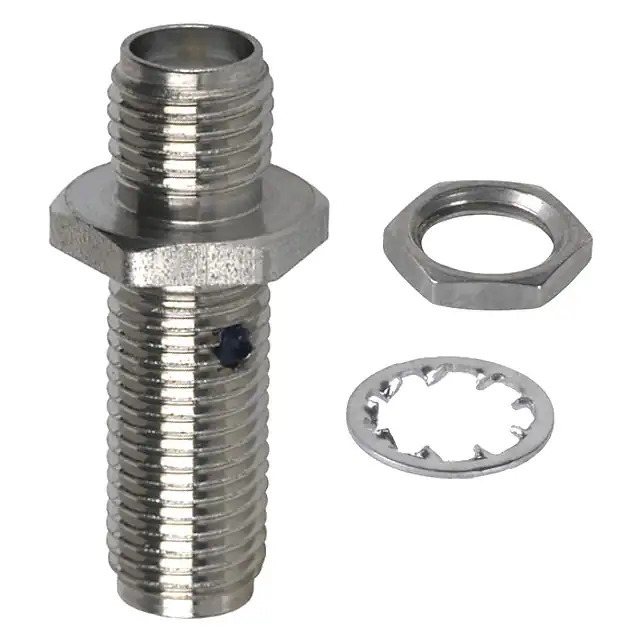

1054869-1

Name: 1054869-1
Brand: TE Connectivity
SKU: 1365252
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1054869-1
Manufacturer	TE Connectivity
Catalog	Coaxial Connectors (RF)
Description	CONN ADAPT JACK-JACK OSM 50 OHM / Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50Ohm
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Adapters
Mfr	TE Connectivity AMP Connectors
Series	-
Package	Bulk
Product Status	Active
Adapter Type	Jack to Jack
Conversion Type	Same Series
Adapter Series	OSM to OSM
Center Gender	Female to Female
Convert From (Adapter End)	SMA Jack, Female Socket
Convert To (Adapter End)	SMA Jack, Female Socket
Impedance	50Ohm
Style	Straight
Mounting Type	Panel Mount
Mounting Feature	Bulkhead
Fastening Type	Threaded, Threaded
Frequency - Max	18 GHz
Ingress Protection	-
Center Contact Plating	Gold
Features	-
Includes	3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material	Stainless Steel
Body Finish	-
Center Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Mating Cycles	500
Insertion Loss	-
Temperature Range - Operating	-65°C ~ 125°C
Base Product Number	1054
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
Win Source Part Number	1365252-1054869-1
Ultra Librarian 3D Model	Ultra Librarian 1054869-1 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1365252-1054869-1 is a coaxial connector adapter designed for use in coaxial connectors (RF).

Product Status: Active
Temperature Range: -65°C to 125°C
Style: Straight
Fastening Type: Threaded
Adapter Type: Jack to Jack
Conversion Type: Same Series
Mounting Type: Panel Mount
Maximum Frequency: 18 GHz
Impedance: 50Ohm
Body Material: Stainless Steel
Center Contact Plating: Gold
Center Contact Material: Beryllium Copper
REACH: Unaffected
ECCN: EAR99
