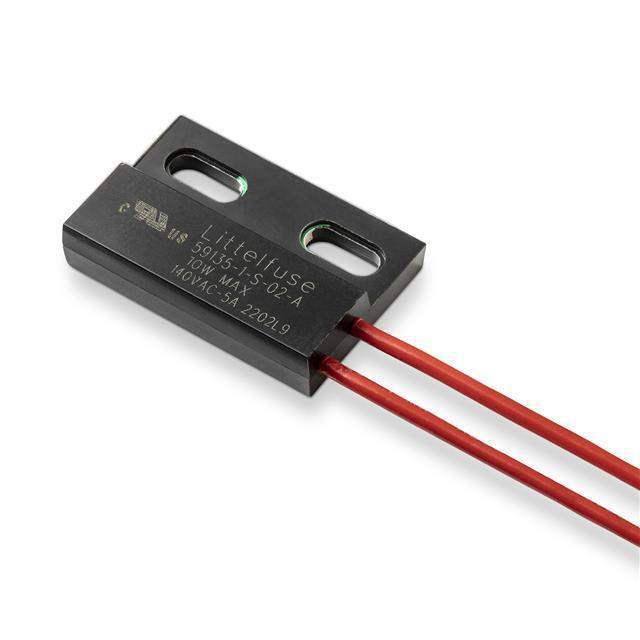

59135-020 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59135-020

Part No 59135-020
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NO W LEADS
Datasheet
59135-020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Part Status Active
Type Reed Switch
Output Type SPST-NO
Actuator Material Magnet
Termination Style Wire Leads
Must Operate 8.89mm
Must Release 29.21mm
Operating Temperature -20°C ~ 105°C
Package / Case Flange Mount
Ultra Librarian 3D Model Ultra Librarian 59135-020 CAD Model

Description

Features

• 2 Part Magnetically Operated Proximity Sensor

• High temperature,rated to 200oC

• Cross-slotted mounting holes for optimum adjustability

• Standard,high voltage or change over contacts

• 300mm (12”) Teflon leads
