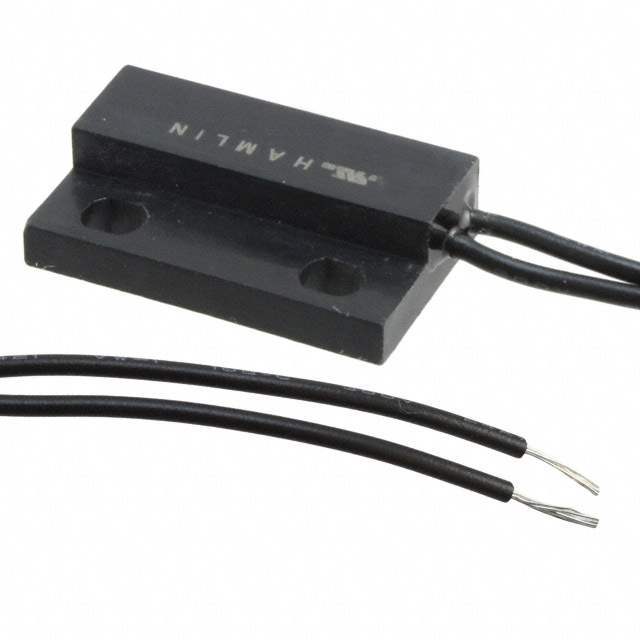

59140-1-T-02-A Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59140-1-T-02-A

Part No 59140-1-T-02-A
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NO W LEADS
Datasheet
59140-1-T-02-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306524-59140-1-T-02-A
Manufacturer Littelfuse Inc.
Category Sensors, Transducers-Magnetic Sensors-Position, Proximity, Speed (Modules)
Packaging  Box
Part Status Active
Type Reed Switch
Output Type SPST-NO
Actuator Material Magnet
Termination Style Wire Leads
Must Operate 8.40mm
Operating Temperature -40°C ~ 105°C
Ultra Librarian 3D Model Ultra Librarian 59140-1-T-02-A CAD Model

Description

The 59140 is a miniature flange mounting reed sensor occupying only 3.22cm² (0.500”²) board space with a choice of normally open, normally open high voltage, normally closed or changeover contacts. The case design enables mounting with M3 screw with washer at 1 Nm torque maximum or adhesive mounting. The wires exit from the right-hand side, see Drawing 2. It is also available with left-hand exit, see 59141 series. The 59140 is capable of switching up to 265Vac/300Vdc at 10VA. It is well suited for use in a wide range of industrial, appliances, or IoT proximity sensing applications.
