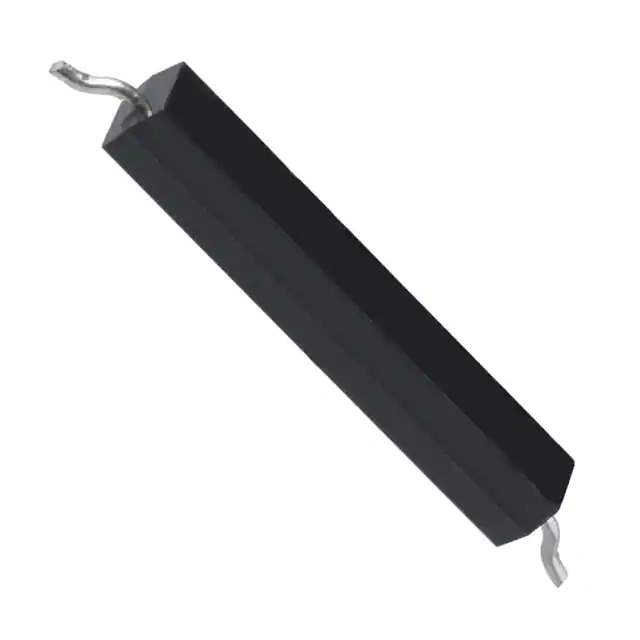

59165-1-T-00-D Real Image
Same model may have multiple batches, images only for reference.

59165-1-T-00-D

Part No 59165-1-T-00-D
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 350MA 140V / Molded Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Magnetic, Reed Switches
Mfr Littelfuse Inc.
Series 59165
Package Tape & Reel
Product Status Active
Type Molded Body Reed
Circuit SPST-NO
Operate Range 15 ~ 20AT
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 200 V
Power - Rated 10W
Operate Time 1 ms
Release Time 1 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Length - Overall 0.795" (20.19mm)
Size - Body 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board 0.099" (2.52mm)
Temperature Range - Operating -40°C ~ 105°C
Capacitance 0.3 pF
Current - Carry 800mA (DC)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 856612-59165-1-T-00-D
Ultra Librarian 3D Model Ultra Librarian 59165-1-T-00-D CAD Model

Description

The 856612-59165-1-T-00-D is a magnetic reed switch from the 59165 series. It is manufactured by Littelfuse Inc..

  • Series: 59165
  • Type: Molded Body Reed Switch
  • Height Above Board: 0.099"
  • Overall Length: 0.795"
  • Circuit Configuration: SPST-NO
  • Operate & Release Time: 1ms
  • Power Rating: 10W
  • Operate Range: 15 ~ 20AT
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 105°C
  • California Prop 65: Complies
