80815000000 Littelfuse Inc. – Price, Stock & Datasheet

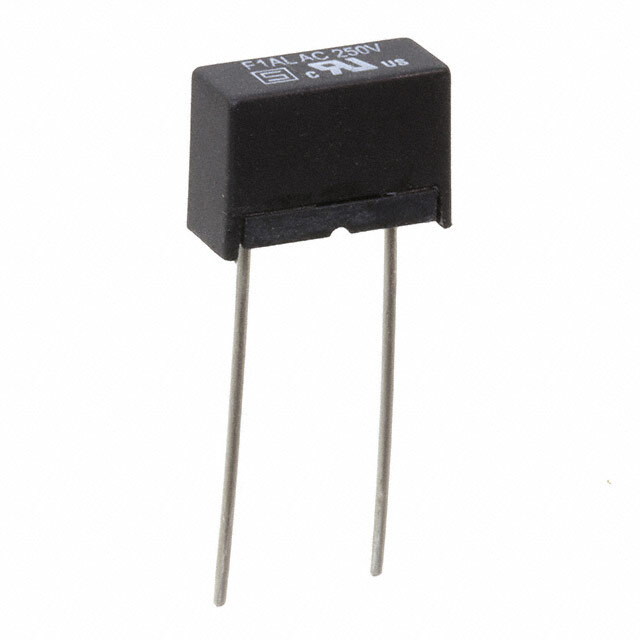

Same model may have multiple batches, images only for reference.

80815000000

Part No 80815000000
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MT 5A 250VAC 250VDC RAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5 A
Voltage Rating - AC 250 V
Voltage Rating - DC 250 V
Response Time Fast Blow
Case / Package Radial, Box
Breaking Capacity @ Rated Voltage 100A AC, 10kA DC
Melting I2t 1.1584
Approval Agency cULus
Temperature Range - Operating -40°C ~ 125°C
Size / Dimension 0.350\
Package Cut Tape (CT)
Supply and Demand Status Normal
Win Source Part Number 1604682-80815000000
Ultra Librarian 3D Model Ultra Librarian 80815000000 CAD Model

Description

N
