Same model may have multiple batches, images only for reference.

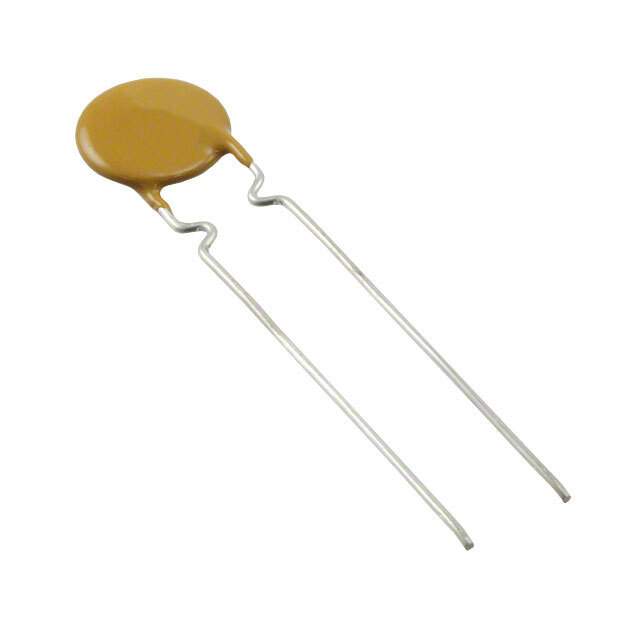

AHRF200-2 Real Image
Same model may have multiple batches, images only for reference.

AHRF200-2

Part No AHRF200-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 2A HLD / PTC Resettable Fuse 2A(hold) 3.8A(trip) 16V 100A 1.4W 4.8s 0.039Ohm Radial 9.4 X 5.08mm T/R Automotive
Datasheet
AHRF200-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, AHRF
Packaging Reel package
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 2A
Current - Trip (It) 3.8A
Time to Trip 4.8s
Resistance - Initial (Ri) (Minimum) 39 mOhm
Resistance - Post Trip (R1) (Maximum) 110 mOhm
Operating Temperature Range -40°C ~ 125°C
Ratings AEC-Q200
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.370" Dia x 0.118" W (9.40mm x 3.00mm)
Height - Seated (Maximum) 0.567" (14.40mm)
Lead Spacing 0.199" (5.05mm)
Win Source Part Number 768367-AHRF200-2
Popularity Medium
Supply and Demand Status Limited
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Ultra Librarian 3D Model Ultra Librarian AHRF200-2 CAD Model

Description

The Littelfuse Inc. PolySwitch AHRF series is a polymeric type of circuit protection device.

  • Rating: AEC-Q200
  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Trip Current: 3.8A
  • Time to Trip: 4.8s
  • Initial Resistance: 39 mOhm
  • Post-Trip Resistance: 110 mOhm
  • Diameter: 0.370 inches
  • Width: 0.118 inches
  • Maximum Height: 0.567 inches
  • Lead Spacing: 0.199 inches
