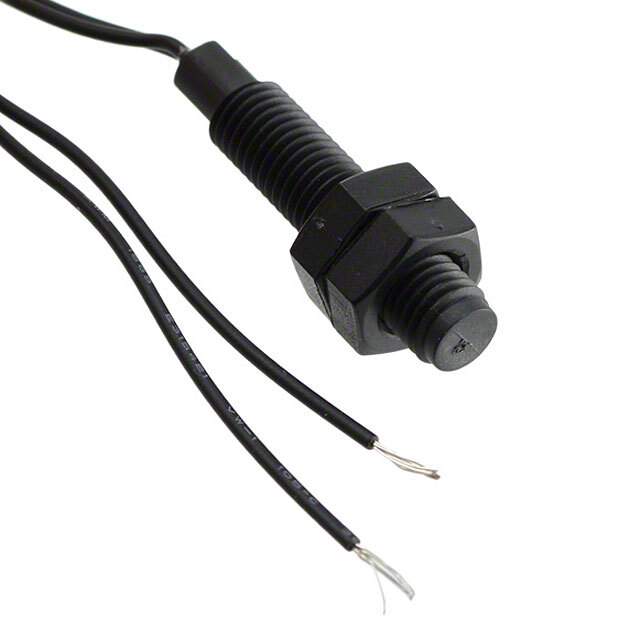

59065-1-S-02-F Real Image
Same model may have multiple batches, images only for reference.

59065-1-S-02-F

Part No 59065-1-S-02-F
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NO W LEADS / Magnetic Reed Switch Magnet SPST-NO Wire Leads Cylinder, Threaded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Position, Proximity, Speed (Modules)
Mfr Littelfuse Inc.
Series 59065
Package Box
Type Reed Switch
Output Type SPST-NO
Actuator Material Magnet
Termination Style Wire Leads
Must Operate 9.00mm
Temperature Range - Operating -40°C ~ 105°C (TA)
Package / Case Cylinder, Threaded
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 1338983-59065-1-S-02-F
Ultra Librarian 3D Model Ultra Librarian 59065-1-S-02-F CAD Model

Description

The Littelfuse 59065 series magnetic sensor is an integrated circuit (IC) designed for position, proximity, and speed applications.

  • Application: Position, Proximity, and Speed
  • Type: Reed Switch
  • Termination: Wire Leads
  • Package Type: Box
  • Standard Package: 100
  • Actuator Material: Magnet
  • Output Type: SPST-NO
  • Must Operate Distance: 9.00mm
  • Voltage Supply: Not Specified
  • Package/Case: Cylinder, Threaded
  • Operating Temperature: -40°C to 105°C (TA)
  • ECCN: EAR99
