Same model may have multiple batches, images only for reference.

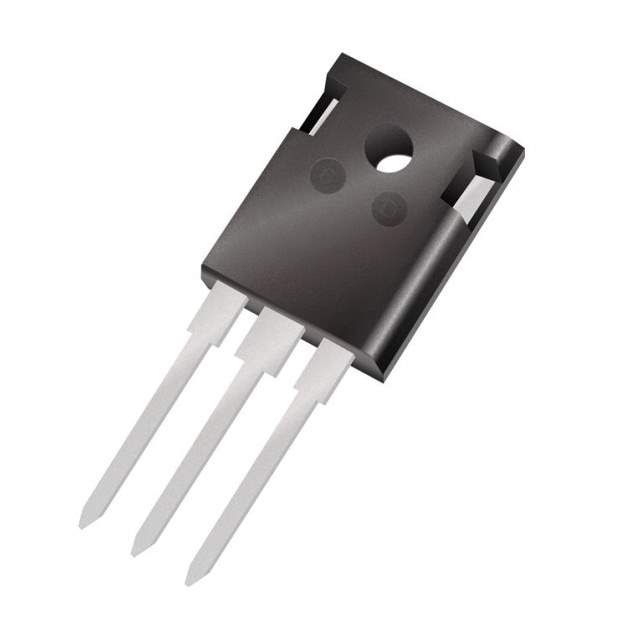

LSIC2SD120E20CCA Real Image
Same model may have multiple batches, images only for reference.

LSIC2SD120E20CCA

Part No LSIC2SD120E20CCA
Manufacturer Littelfuse Inc.
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY DIODE SIC 1200V 20A / Diode Array 1 Pair Common Cathode 1200 V 32A (DC) Through Hole TO-247-3
Datasheet
LSIC2SD120E20CCA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101
Package Tube
Diode Configuration 1 Pair Common Cathode
Technology SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 32A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 10 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 100 µA @ 1200 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247
Standard Package 450
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1348624-LSIC2SD120E20CCA
Ultra Librarian 3D Model Ultra Librarian LSIC2SD120E20CCA CAD Model

Description

The LSIC2SD120E20CCA is a silicon carbide Schottky diode designed for rectification purposes from Littelfuse Inc..

  • Package: Tube
  • Standard Package: 450
  • Reverse Recovery Time (trr): 0 ns
  • Current Reverse Leakage: 100 µA @ 1200 V
  • Diode Configuration: 1 Pair Common Cathode
  • Mounting Type: Through Hole
  • ECCN: EAR99
  • HTSUS: 8541.10.0080
  • Voltage DC Reverse (Vr) (Max): 1200 V
  • Voltage Forward (Vf) (Max) @ If: 1.8 V @ 10 A
  • Current Average Rectified (Io) (per diode): 32A (DC)
  • Automotive: AEC-Q101
  • Operating Temperature: -55°C to 175°C
