Same model may have multiple batches, images only for reference.

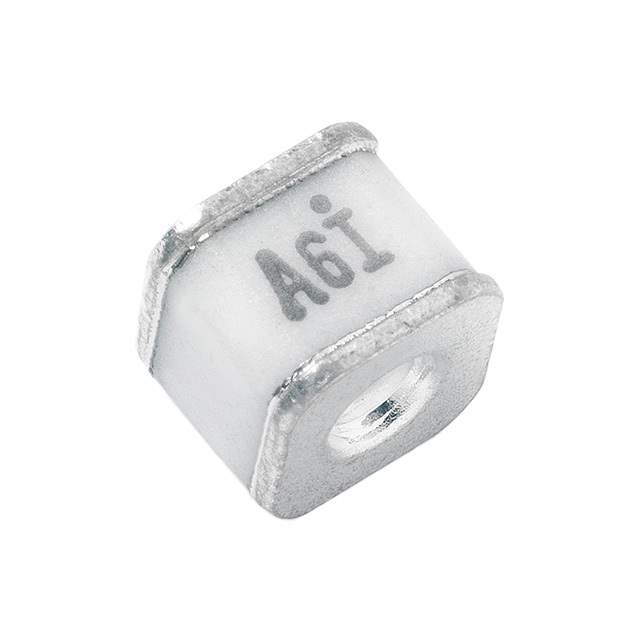

SH230 Real Image
Same model may have multiple batches, images only for reference.

SH230

Part No SH230
Manufacturer Littelfuse Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Gas Discharge Tube Arresters (GDT)
Mfr Littelfuse Inc.
Series SH
Package Tape & Reel
Voltage - DC Spark Over (Nom) 230 V
Impulse Discharge Current (8/20µs) 5000A (5kA)
Number of Poles 2
Fail Short No
Mounting SMD (SMT)
Package / Case 2-SMD, Square End Block
Other Names -SH230,F9939TR,F9939DKR,F9939CT
Standard Package 900
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1301883-SH230
Ultra Librarian 3D Model Ultra Librarian SH230 CAD Model

Description

The Littelfuse gas discharge tube arrester (GDT) is a reliable and efficient solution for circuit protection.

  • Voltage: 230 V DC spark over
  • Configuration: 2-pole
  • Impulse discharge current: Up to 5000A (5kA) @ 8/20µs
  • Package: 2-SMD, square end block
  • Packaging: Tape and reel
  • Standard Quantity: 900
  • ECCN: EAR99 compliant
  • HTSUS code: 8536.30.8000
  • MSL level: 1 (unlimited)
