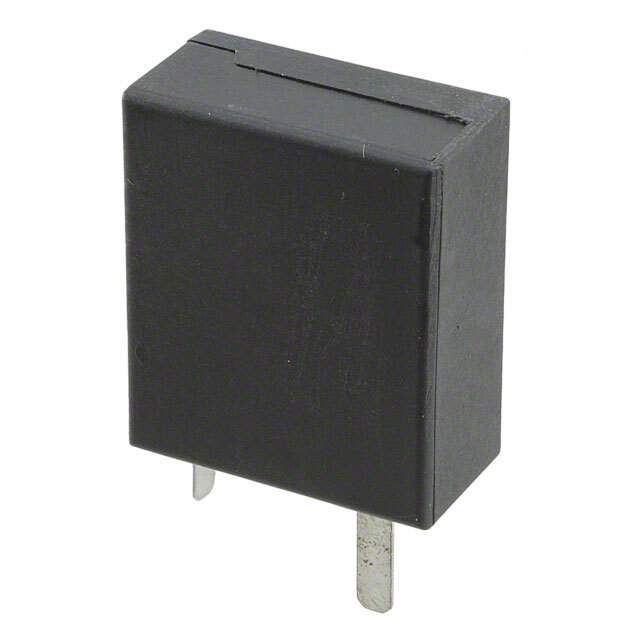

SMOV25S511MP Real Image
Same model may have multiple batches, images only for reference.

SMOV25S511MP

Part No SMOV25S511MP
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Littelfuse Inc.
Series SMOV25S
Package Bulk
Maximum AC Volts 510 V
Maximum DC Volts 670 V
Varistor Voltage (Min) 738 V
Varistor Voltage (Typ) 820 V
Varistor Voltage (Max) 902 V
Current - Surge 20 kA
Energy 520J
Number of Circuits 1
Capacitance @ Frequency 680 pF @ 1 MHz
Temperature Range - Operating -45°C ~ 75°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Box, 5 Lead
Other Names -SMOV25S511MP
Standard Package 32
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1294329-SMOV25S511MP
Ultra Librarian 3D Model Ultra Librarian SMOV25S511MP CAD Model

Description

The SMOV25S511MP is a TVS varistor designed by Littelfuse Inc.

  • Series: SMOV25S series
  • Feature: Thermally protected
  • Capacitance: 680 pF @ 1 MHz
  • Varistor Voltage Range: 738V to 902V
  • Maximum AC Voltage: 510V
  • Maximum DC Voltage: 670V
  • Surge Current: 20kA
  • Energy Rating: 520J
  • Package: Bulk
  • Standard Package: 32
  • Mounting: Through a hole
  • Operating Temperature Range: -45°C ~ 75°C (TA)
  • MSL level: 1 (unlimited)
  • HTSUS: 8533.40.4000
