Same model may have multiple batches, images only for reference.

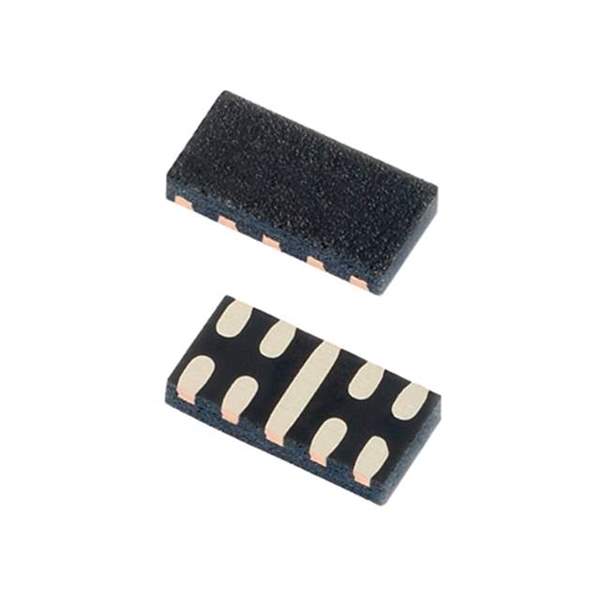

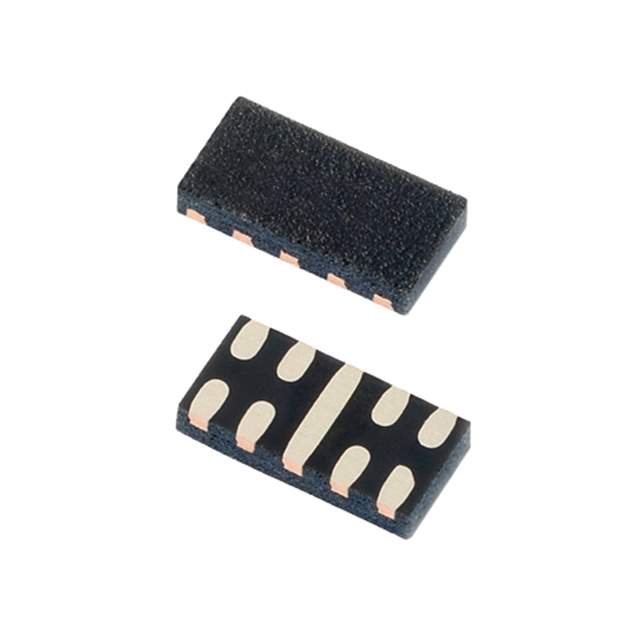

SP0544TUTG Real Image
Same model may have multiple batches, images only for reference.

SP0544TUTG

Part No SP0544TUTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SP0544T
Product Status Obsolete
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Clamping (Max) @ Ipp 7V (Typ)
Current - Peak Pulse (10/1000µs) 2A (8/20µs)
Power Line Protection Yes
Applications HDMI
Capacitance @ Frequency 0.5pF @ 1MHz
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 10-XFDFN
Supplier Device Package 10-µDFN (2.5x1.0)
Other Names F7416DKR,F7416TR,F7416CT,-SP0544TUTG
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1299996-SP0544TUTG
Ultra Librarian 3D Model Ultra Librarian SP0544TUTG CAD Model

Description

The SP0544TUTG is a steering diode array designed to protect HDMI applications from electrostatic discharge (ESD) and other overvoltage transients.

  • Channels: Four unidirectional
  • Voltage Reverse Standoff: 5V (max)
  • Voltage Clamping: 7V (typ) @ Ipp
  • Power Line Protection: Yes
  • Capacitance: 0.5pF @ 1MHz
  • Peak Pulse Current: 2A (8/20µs)
  • Package: 10-XFDFN
  • Temperature Range: -40°C to 150°C (TJ)
  • Status: obsolete product from Littelfuse Inc.
