Same model may have multiple batches, images only for reference.

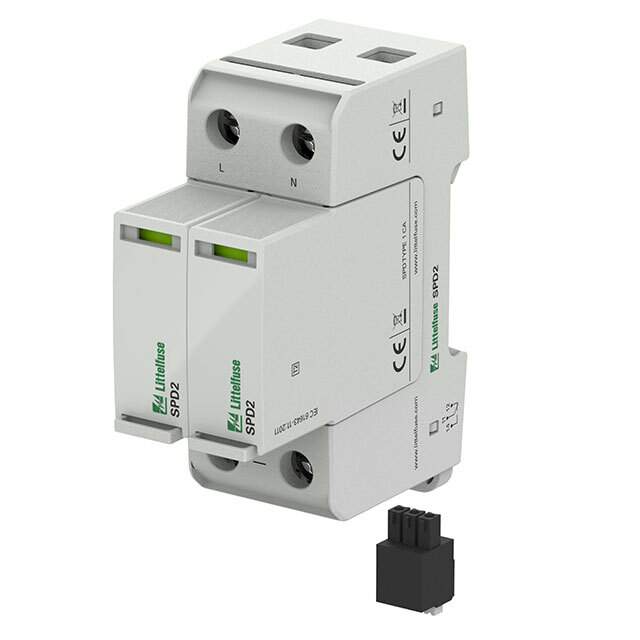

SPD2-480-2P0-R Real Image
Same model may have multiple batches, images only for reference.

SPD2-480-2P0-R

Part No SPD2-480-2P0-R
Manufacturer Littelfuse Inc.
Catalog TVS - Mixed Technology
Description SPD MOD 2P+0 480VAC TYPE 1+2
Datasheet
SPD2-480-2P0-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Surge Protection Devices (SPDs)
Mfr Littelfuse Inc.
Series SPD2 2P+0
Type Type 1, Type 2
Form Module Only
Number of Poles 2
Voltage - Continuous Operating (Max) (MCOV) 480VAC
Current - Discharge (Nom) (8/20µS) 20 kA
Current - Discharge (Max) (8/20µS) 50 kA
Current - Short Circuit Rating (SCRR) 200 kA
Voltage - Protection Rating (VPR) 1.5 kV
Voltage - Protection Level (VP) (2416) 2.3 kV
Temperature Range - Operating -40°C ~ 80°C
Features Remote Signaling Contacts, Thermally Protected
Mounting Type DIN Rail
Approval Agency cURus, UL, VDE
Other Names F12062,-1024-SPD2-480-2P0-R
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1294363-SPD2-480-2P0-R
Ultra Librarian 3D Model Ultra Librarian SPD2-480-2P0-R CAD Model

Description

The Littelfuse Inc. SPD2 2P+0 is a surge protection device that provides Type 1 and Type 2 protection.

  • Voltage Rating: 480VAC
  • Current Discharge: 20kA @ 8/20µS
  • Current Discharge: 50kA @ 8/20µS
  • Short Circuit Rating: 200kA
  • Protection Rating: 1.5kV
  • Protection Level: 2.3kV
  • Remote Signaling Contacts: Yes
  • Thermally Protected: Yes
  • Mounting: DIN rail
  • Temperature Range: -40°C to 80°C
  • Approvals: cURus, UL, and VDE
