Same model may have multiple batches, images only for reference.

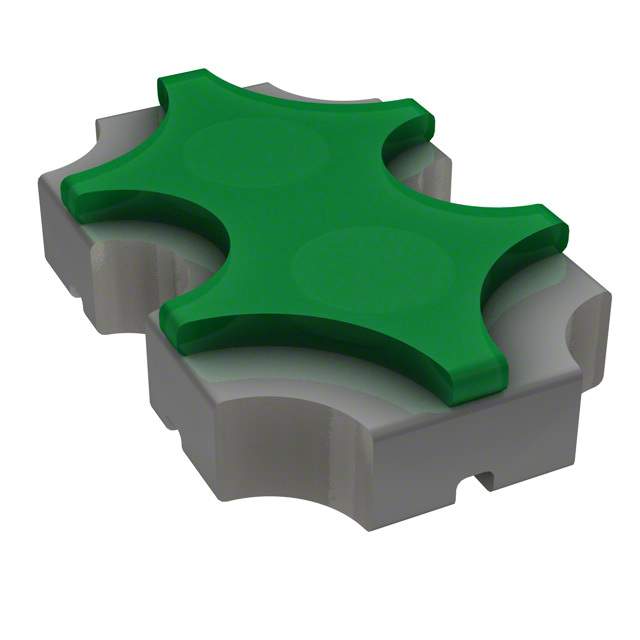

PGB1040805NR Real Image
Same model may have multiple batches, images only for reference.

PGB1040805NR

Part No PGB1040805NR
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 150VC 0805
Datasheet
PGB1040805NR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Bidirectional Channels 4
STAND-OFF Voltage (Vwm) 24V
Max Clamping Voltage 150V (Typ)
Applications General Purpose
Temperature Range - Operating -65°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Win Source Part Number 1087740-PGB1040805NR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PGB1040805NR CAD Model

Description

The PGB1040805NR is a Zener diode designed for use in circuit protection applications and is manufactured by Littelfuse Inc.

  • Application: Circuit Protection
  • Mounting Type: SMD (SMT)
  • Channels: 4 (Bidirectional)
  • Stand-Off Voltage: 24V
  • Maximum Clamping Voltage: 150V
  • Power Dissipation: -
  • Operating Temperature Range: -65°C to 125°C
  • Package: Reel
