Same model may have multiple batches, images only for reference.

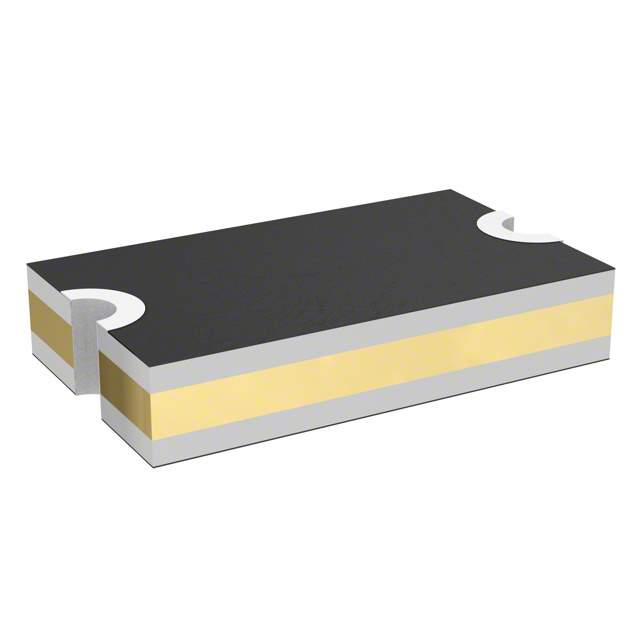

PICOSMDC020S-2 Real Image
Same model may have multiple batches, images only for reference.

PICOSMDC020S-2

Part No PICOSMDC020S-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH .20A RESET FUSE SMD
Datasheet
PICOSMDC020S-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 9V
Current - Max 100A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 470mA
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 750 mOhm
Resistance - Post Trip (R1) (Max) 3.2 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.083" L x 0.055" W (2.10mm x 1.40mm)
Thickness (Max) 0.027" (0.68mm)
Approvals CSA, TUV, UL
Win Source Part Number 098864-PICOSMDC020S-2
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PICOSMDC020S-2 CAD Model

Description

The Littelfuse Inc. 098864-PICOSMDC020S-2 is a polymeric circuit protection component used to protect electronic circuits from overcurrent.

  • Approvals: CSA, TUV, and UL
  • Mounting: SMD (SMT) technology
  • Thickness: 0.027" (0.68mm)
  • Maximum Voltage: 9V
  • Maximum Current: 100A
  • Hold Current (Ih): 200mA
  • Trip Current (It): 470mA
  • Time to Trip: 100ms
  • Resistance - Initial (Ri) (Min): 750 mOhm
  • Resistance - Post Trip (R1) (Max): 3.2 Ohm
  • Supply and Demand Status: sufficient
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 0.083" L x 0.055" W (2.10mm x 1.40mm)
