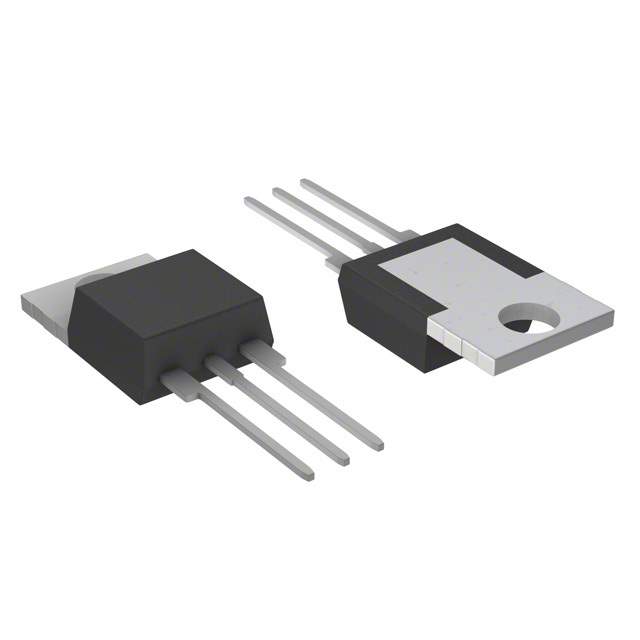

The Q6012LH1LEDTP is a 12 Amp Alternistor Triac from Littelfuse, designed for use in applications requiring bidirectional AC switching and phase control operations. This specific model is optimized for LED lighting applications, providing robust and reliable performance in demanding environments.

Applications

• LED Lighting Control: Specifically designed for dimming and switching of LED lighting systems.
• Solid State Relays (SSR): Used as a switching element in solid-state relays.
• Motor Speed Controls: Suitable for controlling the speed of universal AC motors.
• Heater Controls: Employed in controlling the temperature of resistive heaters.
• AC Switching: General-purpose AC switching applications.

Features

• Alternistor Triac: Provides enhanced performance in inductive load applications compared to standard triacs.
• High Surge Current Capability: Withstands high surge currents, ensuring robustness against transient events.
• High Blocking Voltage: Offers a high blocking voltage capability, enhancing reliability in high-voltage applications.
• LED Optimized: Specifically designed and optimized for LED lighting applications.
• Sensitive Gate Triggering: Requires a low gate trigger current, enabling easy interfacing with control circuitry.

Benefits

• Improved LED Lighting Performance: Provides smooth and efficient dimming and switching of LED lighting systems.
• Enhanced Reliability: Offers enhanced reliability in inductive load applications due to the alternistor construction.
• Robustness: Withstands high surge currents and high blocking voltages, ensuring robust performance in harsh environments.
• Simplified Control Circuitry: Requires a low gate trigger current, simplifying the design of control circuitry.
• Long Lifespan: Provides a long operational lifespan, reducing maintenance costs.

Additional Details

The Q6012LH1LEDTP features a voltage rating of 600V and a current rating of 12A. It is designed to be easily mounted on a heatsink for proper thermal management. The sensitive gate triggering characteristic of this triac allows for effective interfacing with microcontrollers and other control circuits. Its robust construction and electrical characteristics make it a reliable choice for demanding AC switching applications, especially in LED lighting systems.
