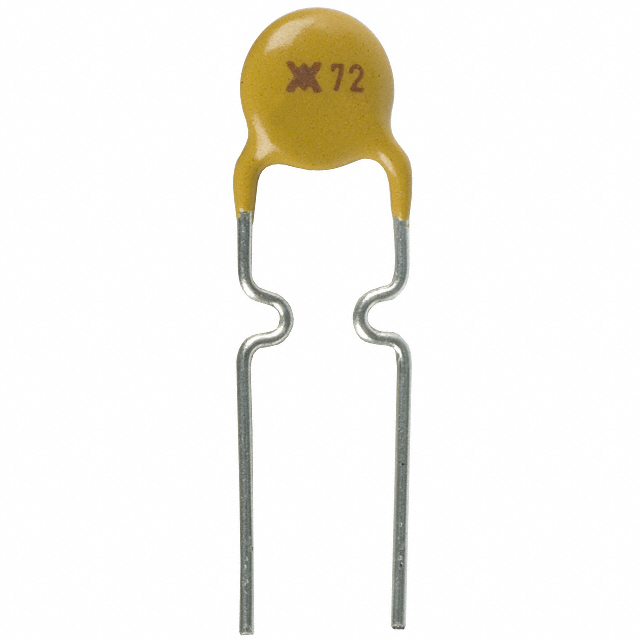

RHEF100-AP

Part No RHEF100-AP
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 1A RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Polymeric
Voltage - Max 30V
Current - Hold (Ih) (Max) 1 A
Current - Trip (It) 1.8 A
Current - Max 40 A
Time to Trip 5.2 s
Resistance - Initial (Ri) (Min) 180 mOhms
Resistance - Post Trip (R1) (Max) 430 mOhms
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Case / Package Radial, Disc
Size / Dimension 0.382" Dia x 0.118" T (9.70mm x 3.00mm)
Height - Seated (Max) 0.535" (13.60mm)
Lead Spacing 0.199\
Package Cut Tape (CT)
Supply and Demand Status Shortage
Win Source Part Number 1607541-RHEF100-AP
Ultra Librarian 3D Model Ultra Librarian RHEF100-AP CAD Model
