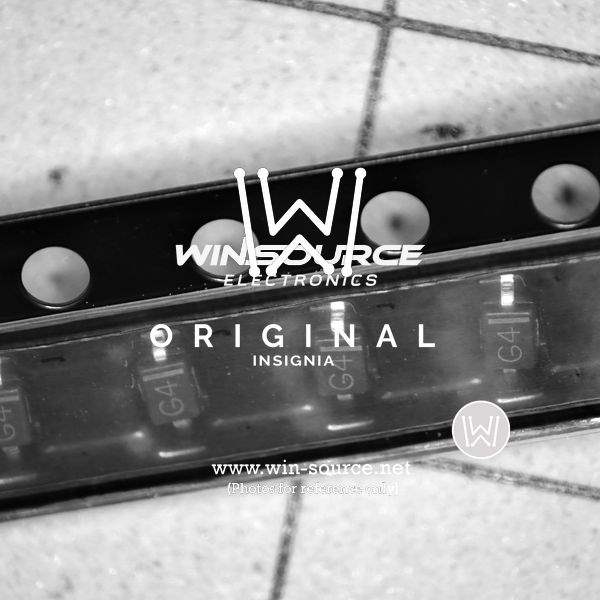

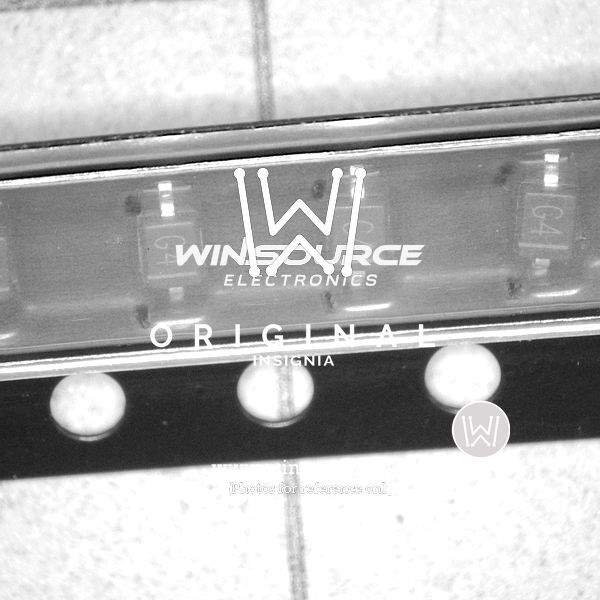

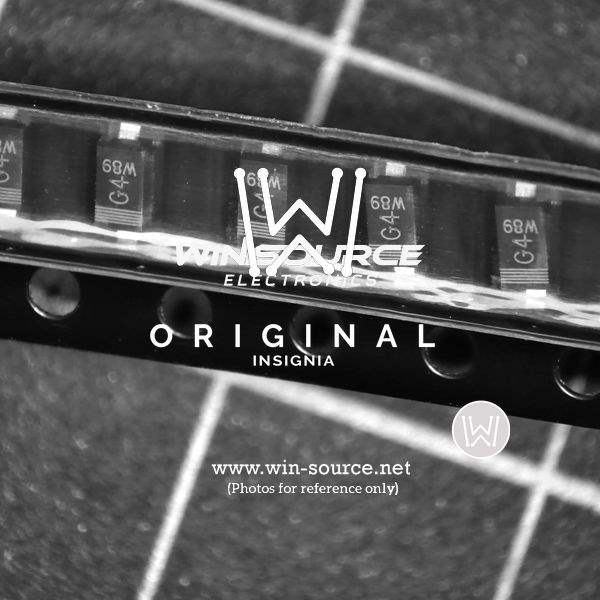

SD36-01FTG Real Image SD36-01FTG real image11018 SD36-01FTG Real Image1 SD36-01FTG Real Image2
Same model may have multiple batches, images only for reference.
SD36-01FTG Real Image SD36-01FTG real image11018 SD36-01FTG Real Image1 SD36-01FTG Real Image2
SD36-01FTG Real Image SD36-01FTG real image11018 SD36-01FTG Real Image1 SD36-01FTG Real Image2
Same model may have multiple batches, images only for reference.

SD36-01FTG

Part No SD36-01FTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 36VWM 62VC SOD323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 36V (Max)
Max Clamping Voltage 62V
Peak Pulse Current(Ippm) 5A (8/20μs)
Power Dissipation - Pd 450W
Applications General Purpose
Capacitance @ Frequency 50pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-323
Win Source Part Number 1094996-SD36-01FTG
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SD36-01FTG CAD Model

Description

The Littelfuse Inc. SD36-01FTG is a unidirectional zener diode that is designed for general purpose use.

  • Stand-off Voltage: 36V (Max)
  • Maximum Clamping Voltage: 62V
  • Peak Pulse Current: 5A (8/20μs)
  • Power Dissipation: 450W
  • Package: SOD-323 package
  • Technology: suitable for surface mount technology
