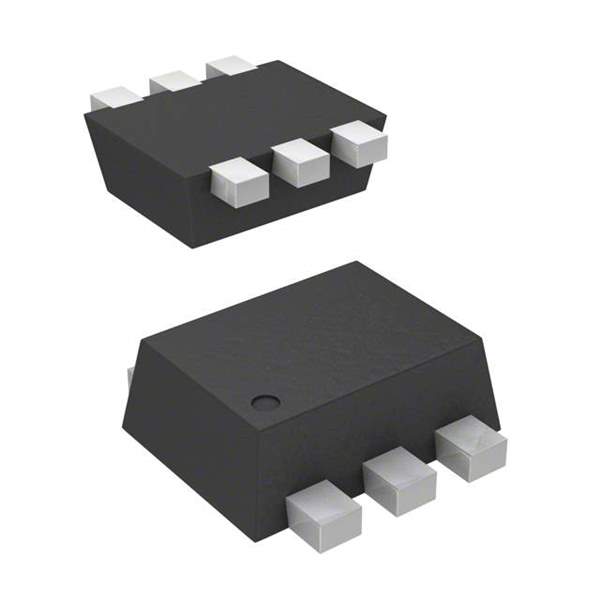

SP3004-04XTG Real Image
Same model may have multiple batches, images only for reference.

SP3004-04XTG

Part No SP3004-04XTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 6VWM 15VC SOT563
Datasheet
SP3004-04XTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 6V (Max)
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 4A (8/20μs)
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-563
Win Source Part Number 1101195-SP3004-04XTG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SP3004-04XTG CAD Model

Description

The Littelfuse Inc. SP3004-04XTG is a steering (rail to rail) type electronic component with 4 unidirectional channels and power line protection.

  • Maximum Stand-Off Voltage: 6V
  • Peak Pulse Current: 4A (8/20μs)
  • Mounting Type: SMD (SMT)
  • Clamping Voltage: 15V
  • Case/Package: SOT-563
  • Temperature Range: -40°C to 125°C (TJ)
  • Supply and Demand Status: Balanced
