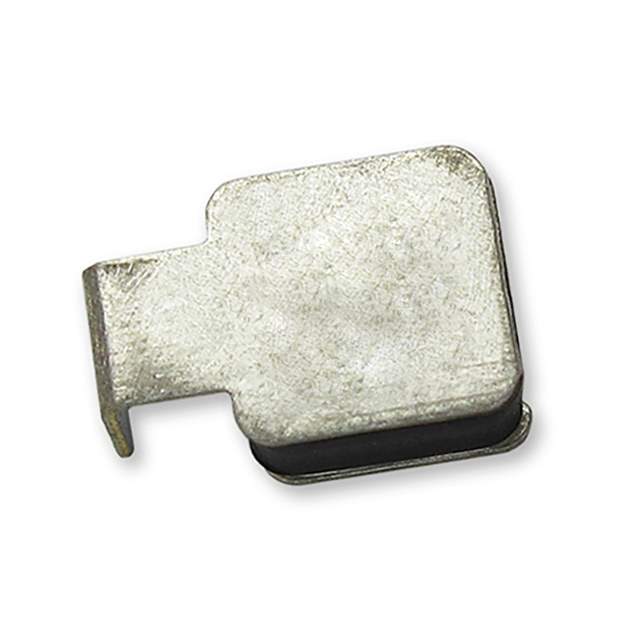

TSL250-080F-B-0.5-2 Real Image
Same model may have multiple batches, images only for reference.

TSL250-080F-B-0.5-2

Part No TSL250-080F-B-0.5-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 0.08A SMD / PTC Resettable Fuse 0.08A(hold) 0.24A(trip) 80VDC 1.2W 5Ohm SMD Solder Pad 7.9 X 5.3 X 3.7mm T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, TS250
Packaging Reel package
Type Polymeric
Voltage - Max 80V (250V Int)
Current - Max 3A
Current - Hold (Ih) (Maximum) 80mA
Current - Trip (It) 240mA
Time to Trip 1.6s
Resistance - Initial (Ri) (Minimum) 5 Ohm
Resistance - Post Trip (R1) (Maximum) 20 Ohm
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 2-SMD
Dimension 0.287" L x 0.199" W (7.30mm x 5.05mm)
Thickness (Maximum) 0.146" (3.70mm)
Approvals CSA, TUV, UL
Win Source Part Number 798483-TSL250-080F-B-0.5-2
Popularity Medium
Supply and Demand Status Limited
Introduction Date November 09, 2015
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TSL250-080F-B-0.5-2 CAD Model

Description

The Littelfuse Inc. PolySwitch TS250 is a polymeric type circuit protection device.

  • Maximum Voltage: 80V (250V Int)
  • Maximum Current: 3A
  • Trip Current: 240mA
  • Time to Trip: 1.6s
  • Approvals: CSA, TUV, UL
  • Dimension: 0.287" L x 0.199" W (7.30mm x 5.05mm)
