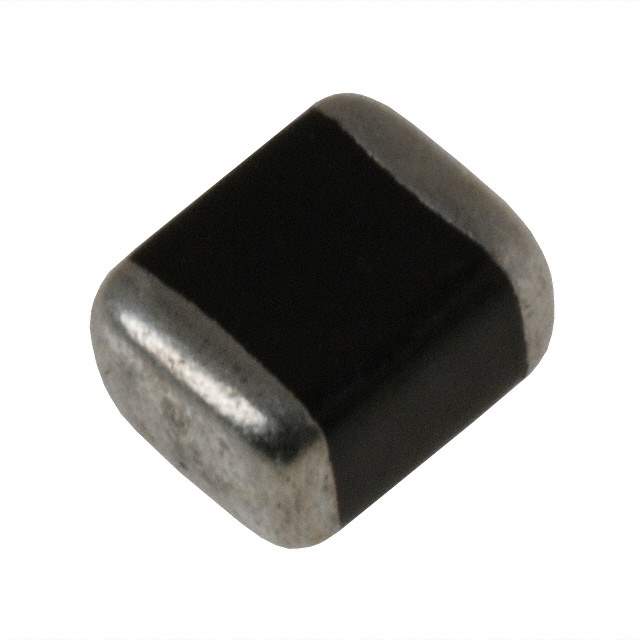

The V18MLA1210NT is a Metal Oxide Varistor (MOV) manufactured by Littelfuse. It is designed to protect electronic equipment from voltage transients caused by events such as lightning strikes, inductive load switching, and electrostatic discharge (ESD). This component belongs to the MLA series, known for its compact size and high surge current handling capabilities.

Applications:

• Consumer Electronics: Surge protection for televisions, set-top boxes, and audio equipment.
• Telecommunications: Protection of telephone lines and data communication equipment.
• Industrial Controls: Protecting programmable logic controllers (PLCs) and industrial sensors.
• Power Supplies: Transient voltage suppression in AC/DC power supplies and adapters.
• LED Lighting: Surge protection for LED drivers and lighting fixtures.

Features:

• Compact Size: 1210 surface mount package for space-constrained applications.
• High Surge Current Capability: Designed to withstand high surge currents without degradation.
• Fast Response Time: Rapidly clamps transient voltages to protect sensitive components.
• RoHS Compliant: Environmentally friendly and compliant with RoHS regulations.
• Wide Operating Temperature Range: Suitable for use in diverse environmental conditions.

Benefits:

• Protection from Voltage Transients: Prevents damage to electronic components due to voltage surges.
• Improved System Reliability: Reduces the risk of equipment failure and downtime.
• Extended Product Lifespan: Protects equipment from premature aging caused by voltage transients.
• Cost-Effective Solution: Provides a cost-efficient means of protecting valuable electronic assets.
• Easy to Integrate: Simple to incorporate into existing circuit designs.

Additional Details:

The V18MLA1210NT has a maximum allowable AC voltage of 18V. It is designed to limit transient voltages to a specific clamping voltage, diverting the surge current away from protected components. The operating temperature range is typically -40°C to +85°C. This varistor is surface mounted using reflow soldering techniques. Refer to the Littelfuse datasheet for comprehensive specifications, including surge current ratings for various waveforms (e.g., 8/20µs) and application guidelines. The construction utilizes a metal oxide ceramic material, providing the necessary non-linear resistance characteristics for effective transient voltage suppression.
