Same model may have multiple batches, images only for reference.

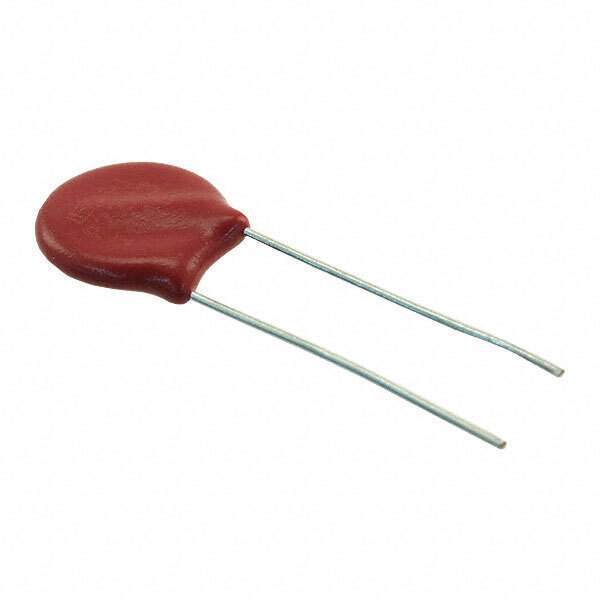

V22ZA3P Real Image
Same model may have multiple batches, images only for reference.

V22ZA3P

Part No V22ZA3P
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 22V 1KA DISC 14MM
Datasheet
V22ZA3P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Varistor Voltage (Min) 19.8V
Varistor Voltage (Typ) 22V
Varistor Voltage (Max) 24.2V
Current - Surge 1kA
Energy 4.0J
Number of Circuits 1
Maximum AC Volts 14VAC
Maximum DC Volts 18VDC
Capacitance @ Frequency 14730pF @ 1MHz
Temperature Range - Operating -55°C to 85°C (TA)
Mounting Through Hole
Dimension Disc 14mm
Win Source Part Number 117395-V22ZA3P
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian V22ZA3P CAD Model

Description

The Littelfuse Inc. 117395-V22ZA3P is a bulk-packaged varistor with a disc size of 14mm.

  • Capacitance: 14730pF @ 1MHz
  • Varistor Voltage: 19.8V to 24.2V (ranging)
  • Maximum AC Voltage: 14VAC
  • Maximum DC Voltage: 18VDC
  • Surge Current: 1kA
  • Energy Rating: 4.0J
  • Design: Circuit protection
  • Operating Temperature Range: -55°C to 85°C (TA)
  • Supply and Demand Status: Balanced
