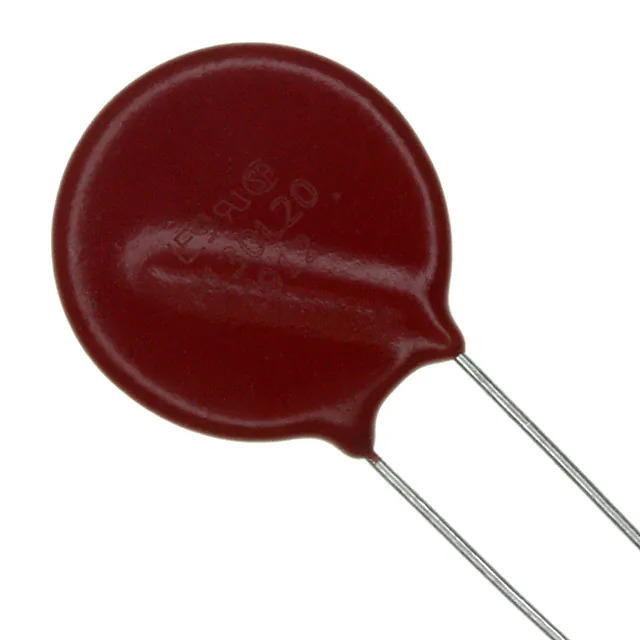

Same model may have multiple batches, images only for reference.
V56ZA20P Littelfuse Inc.
Same model may have multiple batches, images only for reference.

V56ZA20P

Part No V56ZA20P
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 56V 2KA DISC 20MM / 56 V 2 kA Varistor 1 Circuit Through Hole Disc 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr Littelfuse Inc.
Series ZA
Package Bulk
Product Status Active
Maximum AC Volts 35 V
Maximum DC Volts 45 V
Varistor Voltage (Min) 50.4 V
Varistor Voltage (Typ) 56 V
Varistor Voltage (Max) 61.6 V
Current - Surge 2 kA
Energy 30J
Number of Circuits 1
Capacitance @ Frequency 9000 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Disc 20mm
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1361100-V56ZA20P
Ultra Librarian 3D Model Ultra Librarian V56ZA20P CAD Model

Description

The V56ZA20P is a transient voltage suppressor (TVS) varistor from Littelfuse Inc.

  • Series: ZA
  • Package Size: Disc 20mm
  • Capacitance: 9000pF @ 1MHz
  • Maximum AC Voltage: 35V
  • Surge Current: 2kA
  • Energy Rating: 30J
  • Temperature Range: -55°C to 85°C
  • Mounting Type: Through-Hole
  • REACH Regulations: Unaffected
  • Varistor Voltage: 50.4V to 61.6V
