Same model may have multiple batches, images only for reference.

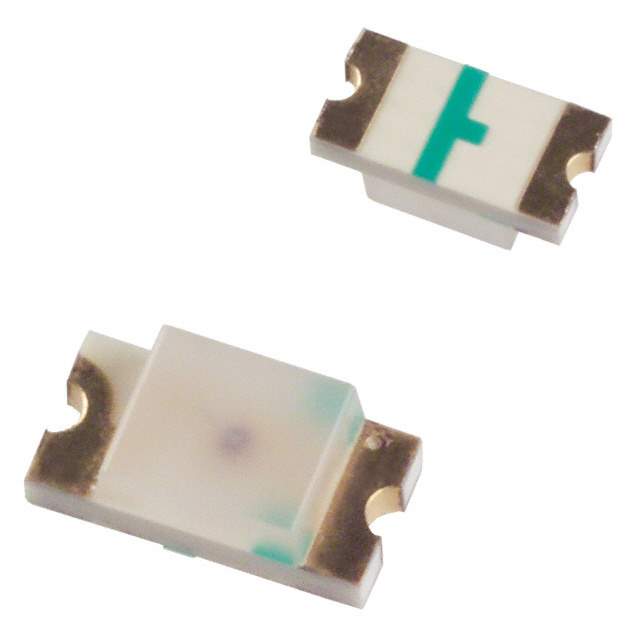

SML-LX1206GW-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX1206GW-TR

Part No SML-LX1206GW-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN DIFFUSED 1206 SMD / Green LED Indication - Discrete 2.2V 1206 (3216 Metric)
Datasheet
SML-LX1206GW-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Green
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 10mcd
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 160°
Mounting SMD (SMT)
Wavelength - Peak 565nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.10mm
Base Product Number SML-LX1206
Other Names 67-1002-1,67-1002-2,SML-LX1206GD,67-1002-2R,4453950,SMLLX1206GWTR,67-1002-1R,67-1002-6,SML-LX1206GW
Standard Package 3,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241875-SML-LX1206GW-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX1206GW-TR CAD Model

Description

The SML-LX1206GW-TR is an LED indication product by Lumex Opto/Components Inc.

  • Category: Optoelectronics
  • Color: Green-colored LED
  • Lens Transparency: Diffused
  • Viewing Angle: 160 degrees
  • Standard Package: 3,000
  • Mounting: SMD (SMT) technology
  • Description: Reliable and efficient component that can be used in a variety of electronic devices
