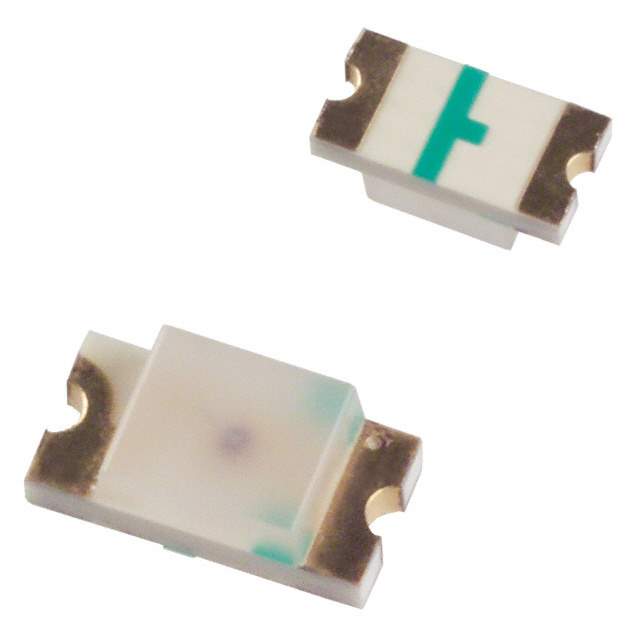

SML-LX1206IW-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX1206IW-TR

Part No SML-LX1206IW-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED DIFFUSED 1206 SMD / Red LED Indication - Discrete 2V 1206 (3216 Metric)
Datasheet
SML-LX1206IW-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Red
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 6mcd
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 160°
Mounting SMD (SMT)
Wavelength - Peak 635nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.10mm
Base Product Number SML-LX1206
Other Names SML-LX1206ID,QUO2346730,67-1003-1,67-1003-2,SML-LX1206IW,SMLLX1206IWTR,67-1003-6,67-1003-2R,67-1003-1R
Standard Package 3,000
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241841-SML-LX1206IW-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX1206IW-TR CAD Model

Description

The Lumex Opto/Components Inc. SML-LX1206IW-TR is a red LED indication component that comes in a tape & reel package.

  • REACH: Unaffected
  • ECCN: EAR99
  • MSL Level: 2A (4 weeks)
  • HTSUS Code: 8541.41.0000
  • Description: Reliable and efficient LED indication component that can be used in various applications
