Same model may have multiple batches, images only for reference.

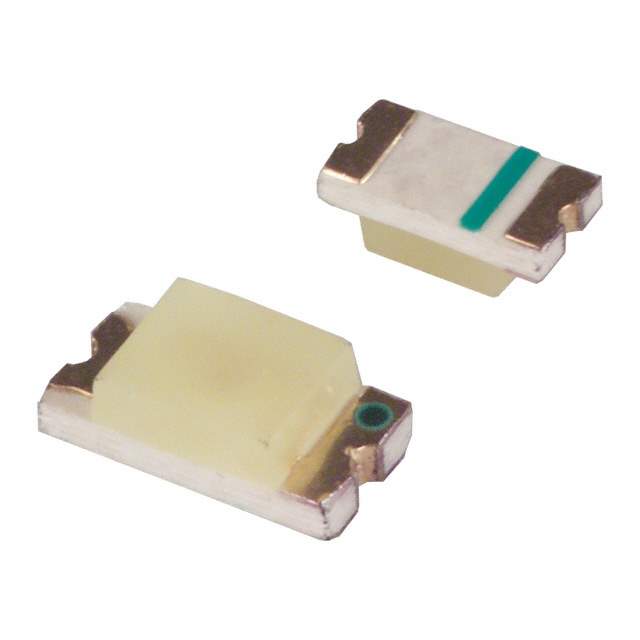

SML-LX1206USBC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX1206USBC-TR

Part No SML-LX1206USBC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED BLUE CLEAR 1206 SMD / Blue LED Indication - Discrete 3.5V 1206 (3216 Metric)
Datasheet
SML-LX1206USBC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Blue
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 25mcd
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.50mm
Voltage - Forward (Vf) (Typ) 3.5V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Peak 470nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.10mm
Base Product Number SML-LX1206
Other Names 67-1701-1,SMLLX1206USBCTR,67-1701-1R,67-1701-2R,67-1701-2,67-1701-6
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241902-SML-LX1206USBC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX1206USBC-TR CAD Model

Description

The SML-LX1206USBC-TR is a blue LED indication component from Lumex Opto/Components Inc.

  • Viewing Angle: 140 degrees
  • Millicandela Rating: 25mcd
  • Forward Voltage: 3.5V
  • Current-Test: 20mA
  • Package: Tape and reel
  • Standard Package: 3,000
  • Mounting: SMD (SMT)
  • Lens Size: 2.00mm x 1.50mm
  • Height: 1.10mm
  • Dimension: 3.20mm L x 1.60mm W
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Wavelength Peak: 470nm
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
